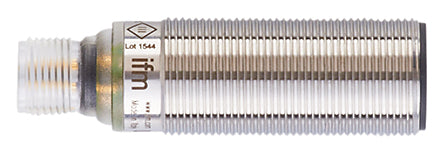

ifm UGT501, Ultrasonic Threaded Barrel Proximity Sensor, M18, 300 mm Detection 4-20 mA, 10 → 30 V dc

Name: ifm UGT501, Ultrasonic Threaded Barrel Proximity Sensor, M18, 300 mm Detection 4-20 mA, 10 → 30 V dc
Brand: ifm
SKU: UGT501
Availability: InStock

Part Number : UGT501

Availability: low stock

Detailed Description
Specifications
Downloads

UGT500 Series Diffuse Ultrasonic Sensors

IFM Electronics UGT500 series diffuse ultrasonic sensors offer an alternative sensing type for long ranges and difficult surfaces. The UGT500 series are able to operate reliably with heavy soiling, allowing them to be used where photoelectric sensors meet their limits.

Ultrasonic sensors transmit and receive sound waves in the ultrasonic range. Objects to be detected reflect the sound waves and distance information is determined via a time of flight measurement. Ultrasonic sensors are able to detect various object types, including colour or transparent objects or objects with a surface shine.

Features and Benefits

Robust high grade stainless steel housing
Vibrating sound transducer reduces the deposit of dirt
Wide sensing range
Easy setting via wire or button teach

IFM Electric Ultrasonic Sensors

Brand	ifm
Thread Size	M18
Sensor Technology	Ultrasonic
Body Style	Threaded Barrel
Detection Range	300 mm
Analogue Switching Output Type	4-20 mA
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	60.5mm
Housing Material	Epoxy Glass Ceramic, Polyamide, Stainless Steel
Maximum DC Voltage	30V
Minimum Operating Temperature	-20°C
Standards Met	CE, cULus, cULus Recognised, EN 55011, EN 60068-2-27, EN 60068-2-6, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, UL
Short Circuit Overload Protection	Yes
Switching Current	35 mA
Maximum Operating Temperature	+70°C
Reverse Polarity Protection	Yes

ifm UGT501, Ultrasonic Threaded Barrel Proximity Sensor, M18, 300 mm Detection 4-20 mA, 10 → 30 V dc

DOWNLOAD CATALOG

UGT501 Operating Instructions 0900766b8150b621

UGT501 UGT500 Series 0900766b8150bd46
