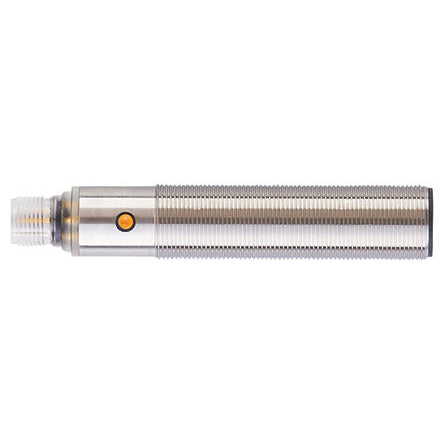

ifm UGT512, Ultrasonic Threaded Barrel Proximity Sensor, M18, 2.2 m Detection, PNP NO/NC, 10 → 30 V dc

Name: ifm UGT512, Ultrasonic Threaded Barrel Proximity Sensor, M18, 2.2 m Detection, PNP NO/NC, 10 → 30 V dc
Brand: ifm
SKU: UGT512
Availability: OutOfStock

Part Number : UGT512

Availability: Sold out

Detailed Description
Specifications

UGT500 Series Diffuse Ultrasonic Sensors

IFM Electronics UGT500 series diffuse ultrasonic sensors offer an alternative sensing type for long ranges and difficult surfaces. The UGT500 series are able to operate reliably with heavy soiling, allowing them to be used where photoelectric sensors meet their limits.

Ultrasonic sensors transmit and receive sound waves in the ultrasonic range. Objects to be detected reflect the sound waves and distance information is determined via a time of flight measurement. Ultrasonic sensors are able to detect various object types, including colour or transparent objects or objects with a surface shine.

Features and Benefits

Robust high grade stainless steel housing
Vibrating sound transducer reduces the deposit of dirt
Wide sensing range
Easy setting via wire or button teach

IFM Electric Ultrasonic Sensors

Brand	ifm
Thread Size	M18
Sensor Technology	Ultrasonic
Body Style	Threaded Barrel
Detection Range	2.2 m
Digital Switching Output Type	PNP
Output Function	NO/NC
Connection Type	M12
Supply Voltage	10 → 30 V dc
Length	97.5mm
IP Rating	IP67
Housing Material	Epoxy Glass Ceramic, Polyamide, Stainless Steel
Maximum DC Voltage	30V
Minimum Operating Temperature	-20°C
Switching Current	55 mA
Communication Protocol	IO-LINK
Short Circuit Overload Protection	Yes
Reverse Polarity Protection	Yes
Switching Frequency	3 Hz
Maximum Operating Temperature	+70°C
Standards Met	CE, cULus, cULus Recognised, EN 55011, EN 60068-2-27, EN 60068-2-6, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, UL
