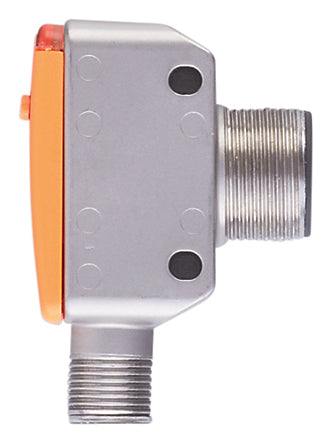

ifm UGT582, Ultrasonic Block Proximity Sensor, M18, 800 mm Detection, PNP NO/NC, 10 → 30 V dc

Name: ifm UGT582, Ultrasonic Block Proximity Sensor, M18, 800 mm Detection, PNP NO/NC, 10 → 30 V dc
Brand: ifm
SKU: UGT582
Availability: InStock

Part Number : UGT582

Availability: low stock

Detailed Description
Specifications
Downloads

UGT500 Series Diffuse Ultrasonic Sensors

IFM Electronics UGT500 series diffuse ultrasonic sensors offer an alternative sensing type for long ranges and difficult surfaces. The UGT500 series are able to operate reliably with heavy soiling, allowing them to be used where photoelectric sensors meet their limits.

Ultrasonic sensors transmit and receive sound waves in the ultrasonic range. Objects to be detected reflect the sound waves and distance information is determined via a time of flight measurement. Ultrasonic sensors are able to detect various object types, including colour or transparent objects or objects with a surface shine.

Features and Benefits

Robust high grade stainless steel housing
Vibrating sound transducer reduces the deposit of dirt
Wide sensing range
Easy setting via wire or button teach

IFM Electric Ultrasonic Sensors

Brand	ifm
Thread Size	M18
Sensor Technology	Ultrasonic
Detection Range	800 mm
Body Style	Block
Output Function	NO/NC
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	53mm
Width	20mm
Housing Material	Epoxy Glass Ceramic, PBT, Polyamide, Stainless Steel
Maximum DC Voltage	30V
Minimum Operating Temperature	-20°C
Depth	37.7mm
Short Circuit Overload Protection	Yes
Maximum Switching Frequency	5Hz
Switching Current	35 mA
Reverse Polarity Protection	Yes
Standards Met	CE, cULus, cULus Recognised, EN 55011, EN 60068-2-27, EN 60068-2-6, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, UL

ifm UGT582, Ultrasonic Block Proximity Sensor, M18, 800 mm Detection, PNP NO/NC, 10 → 30 V dc

DOWNLOAD CATALOG

UGT582 Operating Instructions 0900766b8150b631

UGT582 UGT500 Series 0900766b8150bd5d
