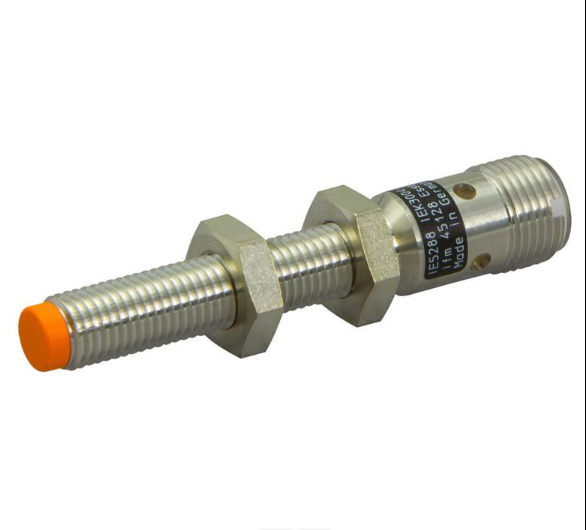

Inductive sensor ifm electronic IE5288 - IEK3004-BPKG/US-104-D
The inductive sensor IE5288 - IEK3004-BPKG/US from ifm operates with a supply voltage of 10-36 V DC. The output is a positive-switching NO contact. Thanks to the increased sensing range of 4 mm with non-flush installation the inductive sensor IE5288 - IEK3004-BPKG/US provides more reliability in your applications. Thanks to the protection rating IP67, 4-fold LED and standardised M12 connector the inductive sensor IE5288 - IEK3004-BPKG/US is often used in handling technology and in special purpose machine building.
- Specifications
- Features
- Downloads
| Electrical design | PNP |
| Housing | Threaded type |
| Installation | Non flush |
| Mounting | Non-flush mountable |
| Operating voltage [V] | 10-36 DC V |
| Output function | Normally open |
| Overload protection | Yes |
| Reverse polarity protection | Yes |
| Sensing range [mm] | 4 mm |
| Short-circuit protection | Yes |
- For use where space is restricted
- Long sensing range for high uptime
- Robust metal housing for use in harsh industrial environments
- Very high switching frequency
- Clearly visible indication of the switching status
