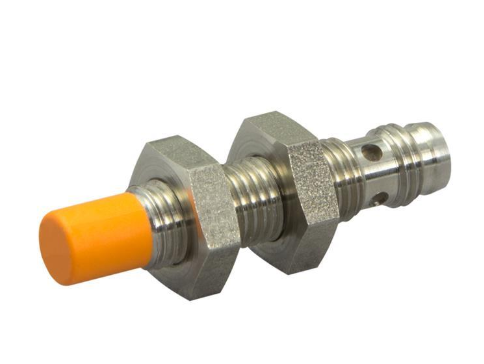

Inductive sensor ifm electronic IE5350 - IEBC005-BSKG/V4A/AS
The IE5350 - IEBC005-BSKG/V4A/AS inductive sensor from ifm electronic operates with a supply voltage of 10-30 V DC. A NC PNP contact is available as an output. Thanks to the increased switching range of 5 mm with non-flush mounting, the inductive sensor IIE5350 - IEBC005-BSKG/V4A/AS offers more safety in your applications. Thanks to a laser-engraved name plate, a 4-fold switching status display and a standard M8 plug-in connection, the IE5350-IEBC005-BSKG/V4A/AS inductive sensor is often used in handling technology and in special purpose machine building.
- Specifications
- Features
- Downloads
Electrical design | PNP/NPN |
Housing | Threaded type |
Mounting | Non-flush mountable |
Operating voltage [V] | 10-30 DC V |
Output function | Normally closed |
Overload protection | Yes |
Reverse polarity protection | Yes |
Sensing range [mm] | 5 mm |
Short-circuit protection | Yes |
Switching frequency DC [Hz] | 600 Hz |
- Particularly short housing
- For use where space is restricted
- Clearly visible indication of the switching status
- Long sensing range for high uptime
- Reduced stock-keeping due to operation as three-wire or two-wire unit
