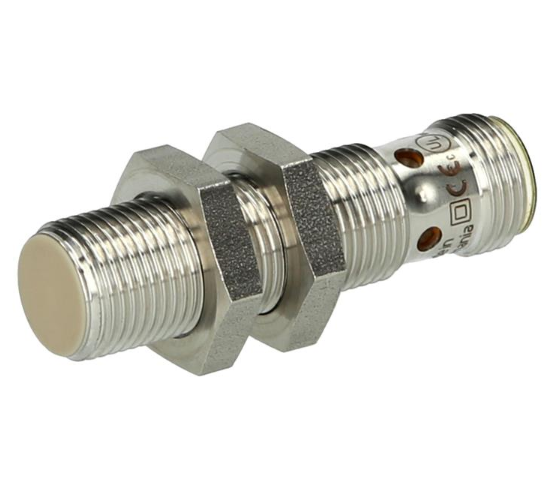

Inductive sensor ifm electronic IFT204 - IFB3004BAPKG/M/V4A/US-104-DPO
The IFT204 - IFB3004BAPKG/M/V4A/US-104-DPO inductive sensor from ifm electronic operates with a supply voltage of 10-36 V DC. Thanks to the high protection rating IP68/IP69K, the temperature range of 0-100 °C and the lasered nameplate, the IFT204 - IFB3004BAPKG/M/V4A/US-104-DPO inductive sensor with a sensing range of 4 mm with flush installation is the optimal proximity switch for use in the food industry. The sensor is temperature shock resistant and the resistance to high pressure cleaning and aggressive cleaning agents has been ECOLAB test certified.
- Specifications
- Features
| Electrical design | PNP |
| Housing | Threaded type |
| Mounting | flush mountable |
| Operating voltage [V] | 10-36 DC V |
| Output function | normally closed |
| Overload protection | yes |
| Reverse polarity protection | yes |
| Sensing range [mm] | 4 mm |
| Short-circuit protection | yes |
| Switching frequency DC [Hz] | 800 Hz |
- Wide operating temperature range
- Temperature shock resistant even in case of frequent temperature fluctuations
- Robust stainless steel housing for use in the food and beverage industry
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High protection rating for the requirements of harsh industrial environments
Related Products

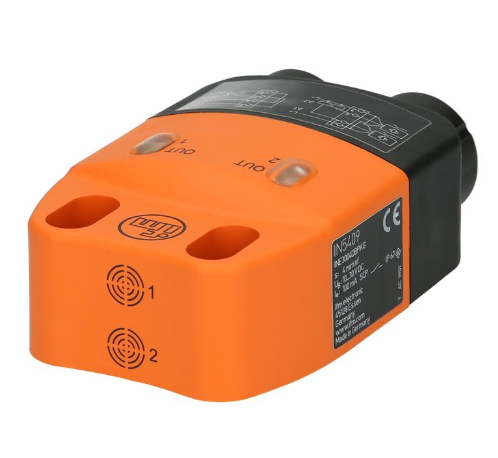

Inductive dual sensor ifm electronic IN5409 - INE3004DBPKG
Inductive dual sensor ifm electronic IN5409 - INE3004DBPKG

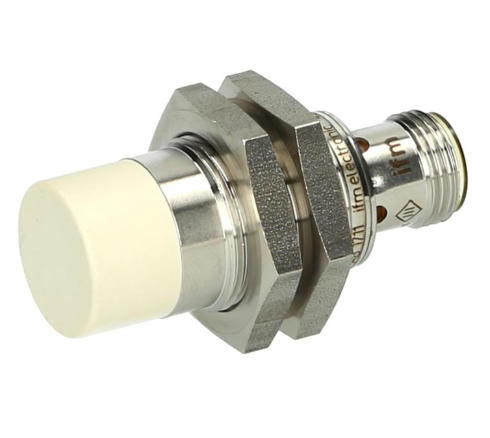

Inductive sensor ifm electronic IGS288 - IGB3012-BPKG/K1/V4A/US-104
Inductive sensor ifm electronic IGS288 - IGB3012-BPKG/K1/V4A/US-104

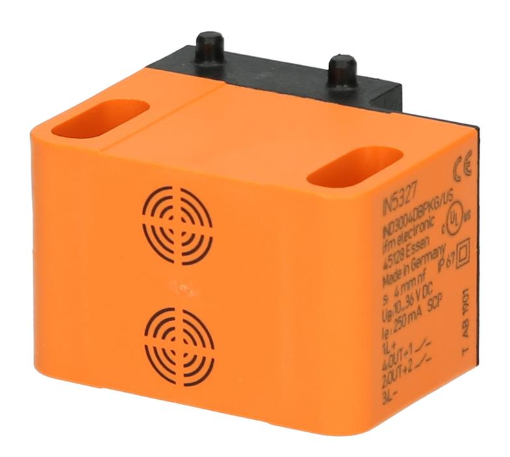

Inductive dual sensor ifm electronic IN5327 - IND3004DBPKG/US-100-DPV
Inductive dual sensor ifm electronic IN5327 - IND3004DBPKG/US-100-DPV

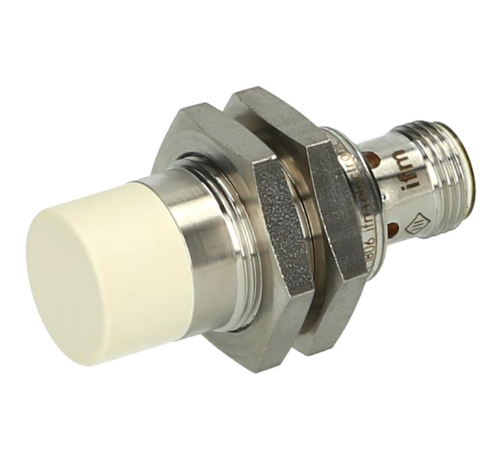

Inductive sensor ifm electronic IGS289 - IGB3015-BPKG/K1/V4A/US-104
Inductive sensor ifm electronic IGS289 - IGB3015-BPKG/K1/V4A/US-104

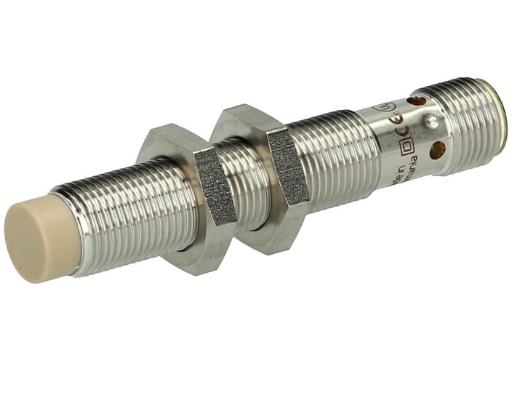

Inductive sensor ifm electronic IFT202 - IFKC007-ASKG/M/V4A/US-104-DRS
Inductive sensor ifm electronic IFT202 - IFKC007-ASKG/M/V4A/US-104-DRS
Inductive sensor ifm electronic IIS281 - IIB3015BBPKG/K1/V4A/US-104
Inductive sensor ifm electronic IIS281 - IIB3015BBPKG/K1/V4A/US-104

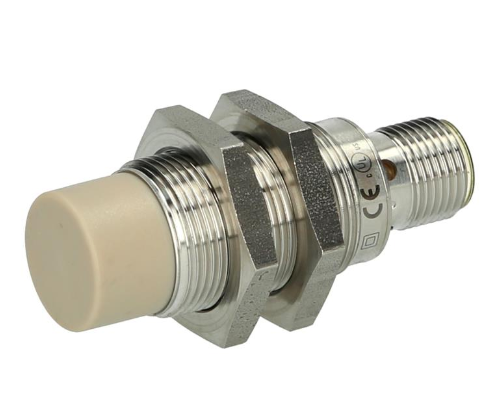

Inductive sensor ifm electronic IGT201 - IGB3012-APKG/M/V4A/US-104-DPO
Inductive sensor ifm electronic IGT201 - IGB3012-APKG/M/V4A/US-104-DPO

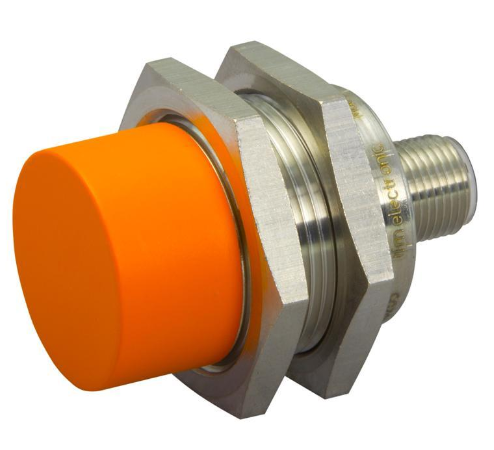

Inductive sensor ifm electronic IIS209 - IIB3022-APKG/M/US
