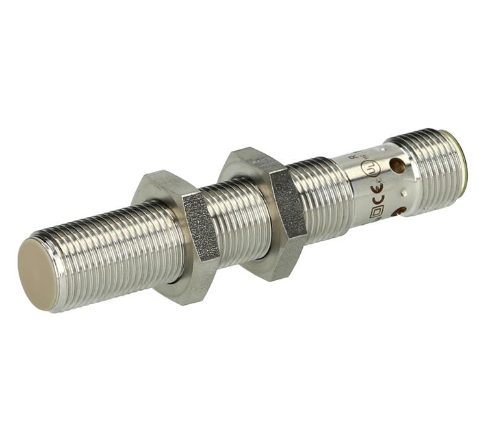

Inductive sensor ifm electronic IFT205 - IFKC004BASKG/M/V4A/US-104-DRS
The IFT205 - IFKC004BASKG/M/V4A/US-104-DRS inductive sensor from ifm electronic operates with a supply voltage of 10-36 V DC. Thanks to the high protection rating IP68/IP69K, the temperature range of 0-100 °C and the lasered nameplate, the IFT205 - IFKC004BASKG/M/V4A/US-104-DRS inductive sensor with a sensing range of 4 mm with flush installation is the optimal proximity switch for use in the food industry. The sensor is temperature shock resistant and the resistance to high pressure cleaning and aggressive cleaning agents has been ECOLAB test certified.
- Specifications
- Features
- Downloads
Electrical design | PNP/NPN |
Housing | Threaded type |
Mounting | flush mountable |
Operating voltage [V] | 10-36 DC V |
Output function | normally open |
Overload protection | yes |
Reverse polarity protection | yes |
Sensing range [mm] | 4 mm |
Short-circuit protection | yes |
Switching frequency DC [Hz] | 500 Hz |
- Wide operating temperature range
- Temperature shock resistant even in case of frequent temperature fluctuations
- Robust stainless steel housing for use in the food and beverage industry
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High protection rating for the requirements of harsh industrial environments
