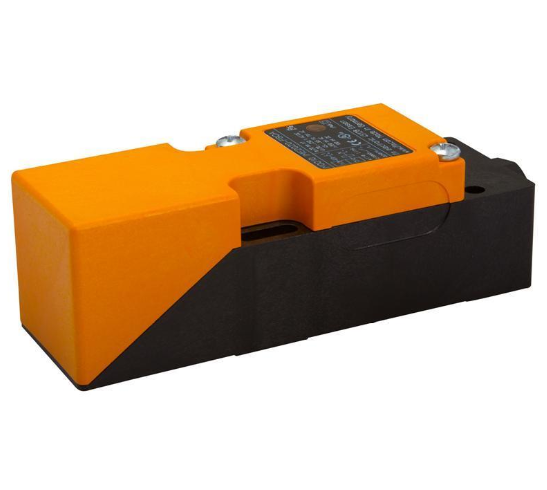

Inductive sensor ifm electronic IM0011 - IME2015BFBOA
The rectangular inductive sensor IM0011 - IME2015BFBOA from ifm operates as dual voltage design with 20-250 V AC/DC. Thanks to its design the inductive sensor IM0011 - IME2015BFBOA is compatible with many mechanical limit switches and can therefore easily be replaced in case of maintenance. With its 15 mm sensing range with flush installation the inductive sensor IM0011 - IME2015BFBOA is the optimum proximity switch for many applications in conveying. The NC or NO output function can be selected via a wire bridge on the unit.
- Specifications
- Features
- Downloads
Housing | Rectangular |
Installation | Flush |
Mounting | Flush mountable |
Operating voltage [V] | 20-250 AC V /DC V |
Output function | Normally open / closed; (selectable) |
Overload protection | No |
Reverse polarity protection | No |
Sensing range [mm] | 15 mm |
Short-circuit protection | No |
Switching frequency DC [Hz] | 55 Hz |
- Long sensing range for use in conveying
- With combined AC/DC output and two-wire technology
- Output function normally open / normally closed programmable
- Robust housing for use in harsh industrial environments
- Large operating voltage range
