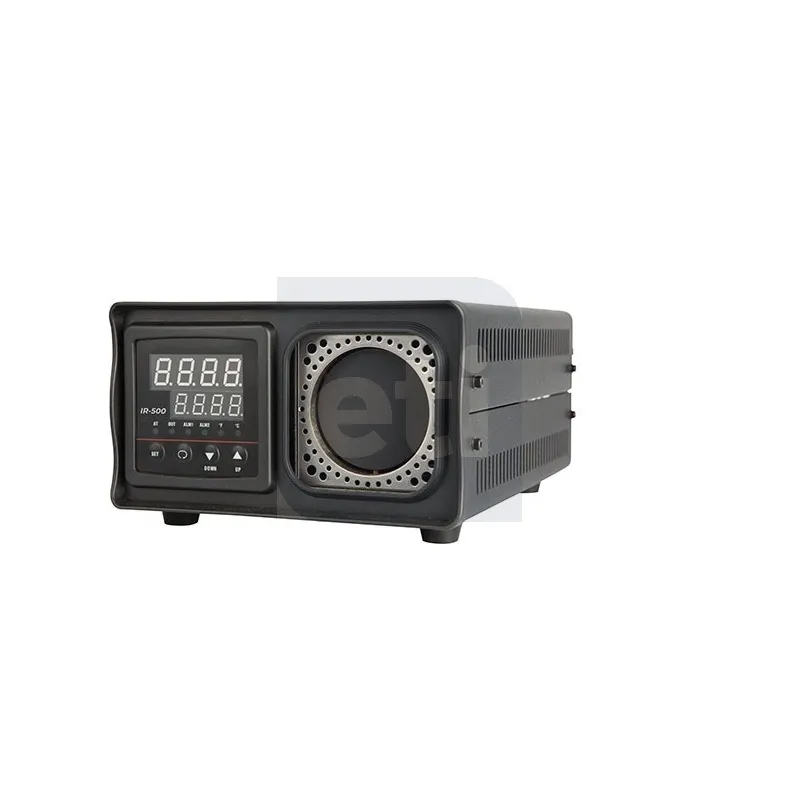

IR-500 Black Body Calibrator
The IR-500 Black Body Calibrator provides a stable heat source for calibrating infrared digital thermometers that require regular temperature calibration checks or validation. The unit has an easy-to-read LED display and regulates the black body surface temperature from 50 to 500 °C. It takes about 40 minutes to reach a maximum temperature of 500 °C. Simply set the verification temperature on the IR-500 Calibrator's digital display, wait for it to stabilise, and then point your infrared thermometer at the 58 mm black body.
- Specifications
- Features
- Downloads
| Accuracy | +/-1 °C below 100 °C +/-2 °C from 100 to 200 °C +/-3 °C from 200 to 500 °C * Better than +/-0.5 °C if used in conjunction with a Reference Thermometer |
| Dimensions | 114 x 180 x 233 mm |
| Power Source | 110 volt AC, 3A or 230 volt AC (+/-10%), 1.5A |
| Range | 50 to 500 °C |
| Resolution | 0.1 °C/°F |
| Weight | 2682 grams |
Ideal for testing the precision of infrared thermometers.
Temperature range of +50 to 500 °C.
