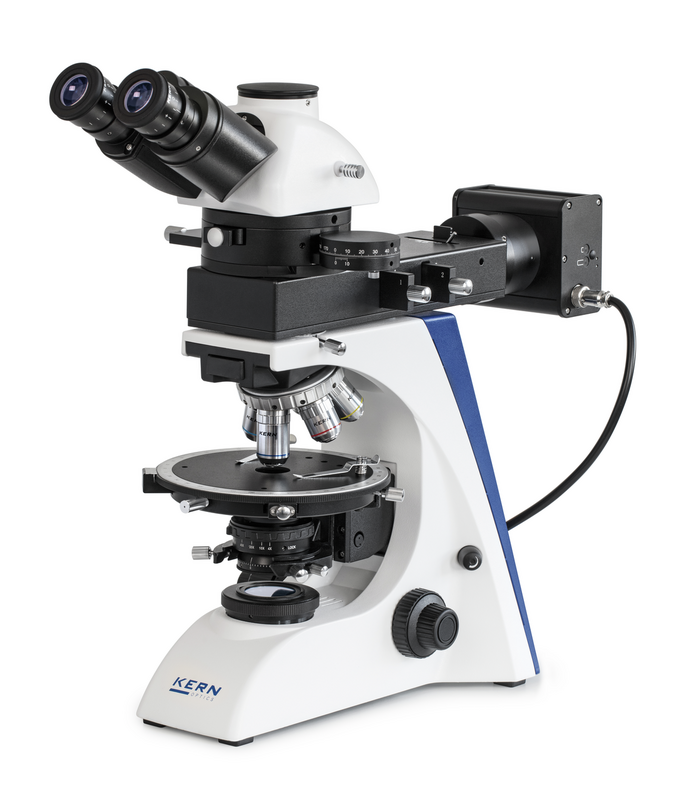

Kern OPO 185 | Polarising microscope | Ocular magnifications 10 x
This apparatus is a sophisticated, fully functional polarizing microscope that analyzes minerals, crystals, and isotropic materials by utilizing the polarization of light.
A combination of LED transmitted illumination and LED incident illumination is the KERN OKO 185. The basic version has a height-adjustable 0.9/0.13 Swing-out Abbe condenser that can be centered for full Köhler illumination.
All series come equipped as standard with a 360° rotating stage with 1° division, 6' fine division, and locking feature.
There is also a wide range of accessories available, including filtration units and additional goals for a long working distance, like a mechanical stage attachment.
The scope of delivery also includes eye cups, a protective dust cover, and multilingual user instructions.

Free UAE shipping available
- Specifications
- Features
- Downloads
Dimensions | 500ƒ-200ƒ-500 mm |
Magnification | 10 x |
Storage Temperature | -5 °C to 40 °C |
There are models of standard (50W) or premium (100W) lighting available.
Perfect for all typical routine examinations in expert labs
Combining light sources for reflection and transmission
Space for up to five objectives on the nosepiece
provided as standard with non-stress Infinity plan objectives of 4x, 10x, 20x, 40x, and 60x (other versions available upon request).
360° rotating binocular-style eyepiece with one-sided diopter adjustment
unit analyzer with scale
Bertrand lens with center adjustment
Fully rotatable specimen stage with adjustable center
Blue filter (alternatives available in amber, green, and neutral)
powered by a typical 230V mains outlet
