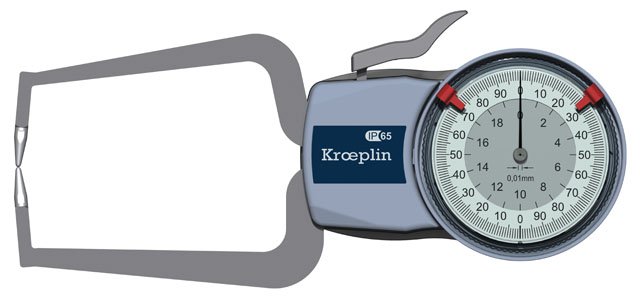

Kroeplin D220, 0 - 20 MM, ANALOG EXTERNAL MEASURING GAUGE FOR GROOVES AND THICKNESS MEASUREMENT
Kroeplin D220 Caliper gauges are extremely adaptable tools that may be used to measure grooves and thickness over a wide range of distances, depending on the type. Tube diameters and thicknesses, groove thicknesses, and other difficult-to-measure outside parameters can all be accurately measured with an external tube thickness gauge. IP65 protection prevents dust penetration and protects against temporary water immersion; allows usage in situations with cutting oil, dust, and other contaminants. The thickness gage's spring-loaded lever makes it easy to use in tight locations. Measurements can be read from a dial gauge.

Free UAE shipping available
- Specifications
- Features
- Downloads
Application | Grooves and Thickness Measurement |
Brand | Kroeplin |
Display | Analog |
Max. permissible errors G | 0.03 mm |
Measuring depth max. L | 85 mm |
Measuring Units | Millimetre / Inch |
Model Number | D220 |
Protection | IP65 |
Range | 0 - 20 mm |
Repeatability limit r | 0.01 mm |
Resolution | 0.01 mm |
Weight | 210 g |
ANALOG EXTERNAL MEASURING GAUGE
FOR GROOVES AND THICKNESS MEASUREMENT
With IP 65 Protection
