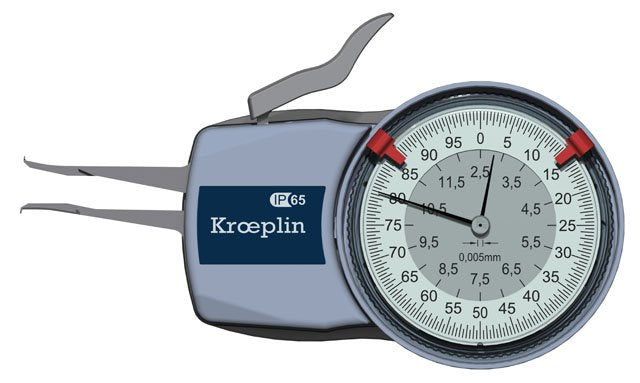

KROEPLIN H102, 2.5 - 12.5 MM, ANALOG INTERNAL MEASURING GAUGE
Internal caliper gauge use spring-loaded jaws to provide consistent point contact pressure for exceptionally precise hole diameter, groove, and tube thickness comparison measurements.Jaws of various types are available for diverse applications. Caliper gauges are versatile measuring tools that can be used to measure a variety of distances and interior dimensions. IP65 protection prevents dust penetration and protects against temporary water immersion; allows usage in situations with cutting oil, dust, and other contaminants. Measurements can be read from a dial gauge.
- Specifications
- Features
- Downloads
| Application | Internal measurement |
| Brand | Kroeplin |
| Display | ANALOG |
| Max. permissible errors G | 0.015 mm |
| Measuring depth max. L | 12 mm |
| Measuring Units | Millimetre / Inch |
| Model Number | H102 |
| Protection | IP65 |
| Range | 2.5 - 12.5 mm |
| Repeatability limit r | 0.005 mm |
| Resolution | 0.005 mm |
| Weight | 155 g |
ANALOG INTERNAL MEASURING GAUG
With IP 65 Protection
