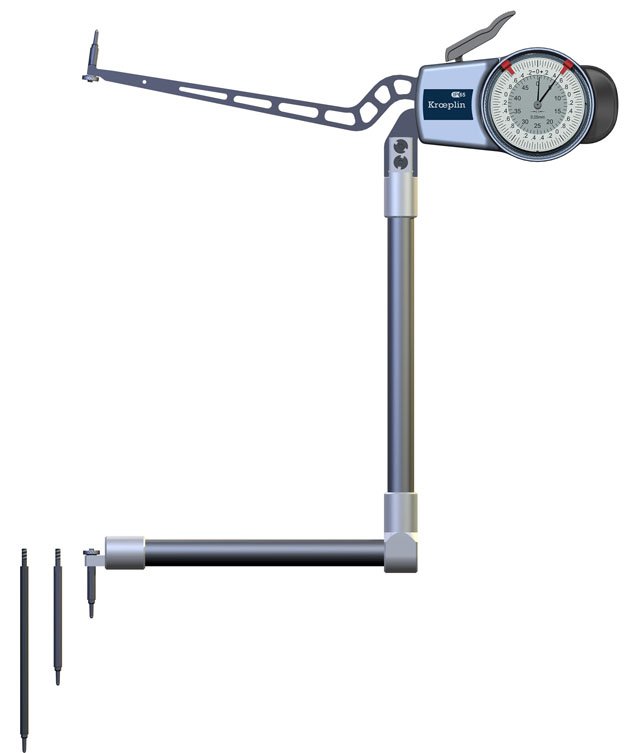

Kroeplin H4M300, 300 - 430 mm, ANALOG Internal comparison measurement
The inside diameter and linear measures dial indicator is designed to be used as a comparison gauge. Internal dial indicators use spring-loaded jaws to maintain consistent point contact pressure for exceptionally precise hole diameter, groove, and tube thickness comparison measurements. IP65 protection prevents dust penetration and protects against temporary water immersion; allows usage in situations with cutting oil, dust, and other contaminants. Measurements can be read from a dial gauge.

Free UAE shipping available
- Specifications
- Features
- Downloads
Application | Internal comparison measurement |
Brand | Kroeplin |
Display | ANALOG |
Max. permissible errors G | 0.15 mm |
Measuring depth max. L | 192 mm |
Measuring Units | Millimetre / Inch |
Model Number | H4M300 |
Protection | IP65 |
Range | 300 - 430 mm |
Repeatability limit r | 0.05 mm |
Resolution | 0.05 mm |
Weight | 450 g |
ANALOG Internal comparison measurement
With IP 65 Protection
