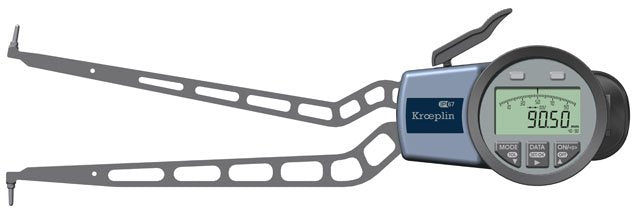

KROEPLIN L440, 40 - 90 MM, DIGITAL INTERNAL MEASURING GAUGE
Internal caliper gauge use spring-loaded jaws to provide consistent point contact pressure for exceptionally precise hole diameter, groove, and tube thickness comparison measurements. Jaws of various types are available for diverse applications. Caliper gauges are versatile measuring tools that can be used to measure a variety of distances and interior dimensions. IP67 protection prevents dust penetration and protects against temporary water immersion; allows usage in situations with cutting oil, dust, and other contaminants. Measurements are displayed on a simple LCD panel.
- Specifications
- Features
- Downloads
| Application | Internal Measurement |
| Brand | Kroeplin |
| Display | Digital |
| Max. permissible errors G | 0.06 mm |
| Measuring depth max. L | 192 mm |
| Measuring Units | Millimetre / Inch |
| Model Number | L440 |
| Protection | IP67 |
| Range | 40 - 90 mm |
| Repeatability limit r | 0.04 mm |
| Resolution | 0.02 mm |
| Weight | 420 g |
DIGITAL INTERNAL MEASURING GAUGE
With IP 67 Protection
