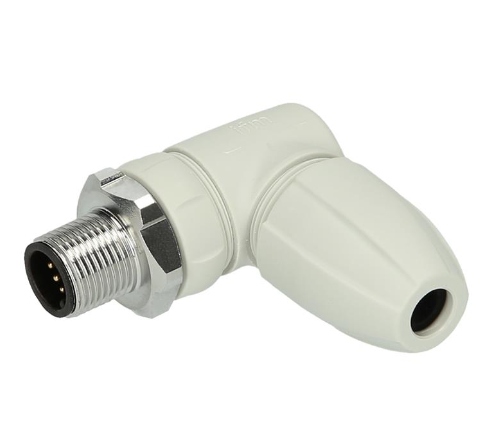

M12 connector ifm electronic EVF572
Part Number : EVF572
The 5-pole wirable EVF570 M12 connector from ifm electronic is an angled connector with 3-point strain relief and a separate highly-elastic seal. Thanks to the proven screw terminals (0.25-1 mm²) and the stainless steel contour nut, the EVF570 M12 connector can be easily installed. The high protection rating of IP65/IP67/IP68/IP69K enables the use of the EVF570 M12 connector in hygienic and wet areas of the food industry.
For pricing, please contact our experts.
- Specifications
- Features
- Downloads
Ambient temperature | -25...100 |
Application | sanitary and wet areas in the food industry |
Material | PA 6.6 grey; sealing EPDM |
Operating voltage [V] | < 60 AC/DC V |
Protection class | II |
Protection | IP 65; IP 67; IP 68; IP 69K |
System | Free from silicone; gold-plated contacts |
Weight | 33.9g |
- Gold-plated contacts for reliable electrical connections
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Safe cable connection with screw terminals
M12 connector ifm electronic EVF572
Related Products

Sold out

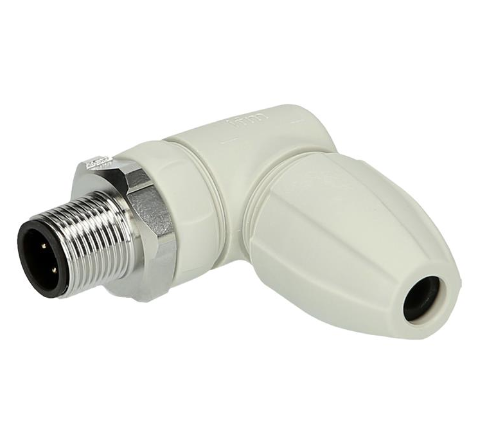

M12 connector ifm electronic EVF568
Contact For Price

Part Number : EVF568
M12 connector ifm electronic EVF568

Sold out
M12 connector ifm electronic EVF569
Contact For Price

Part Number : EVF569
M12 connector ifm electronic EVF569

Sold out

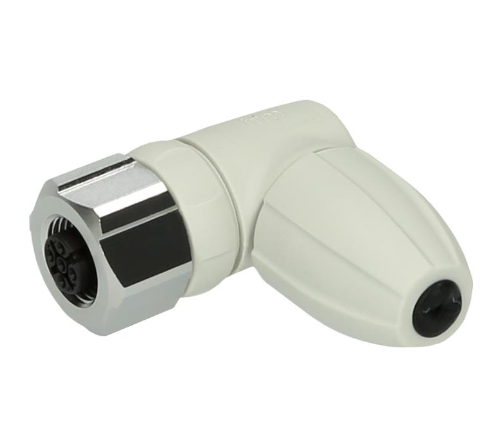

M12 connector ifm electronic EVF570
Contact For Price

Part Number : EVF570
M12 connector ifm electronic EVF570

Sold out

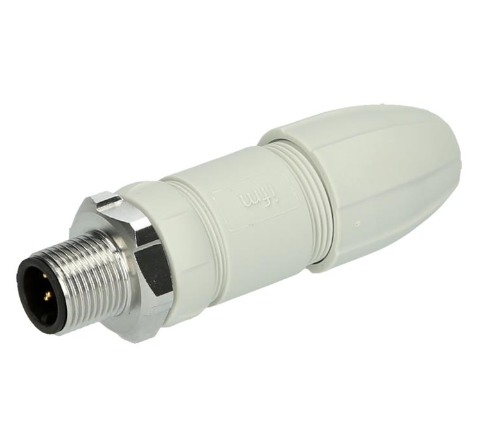

M12 connector ifm electronic EVF571
Contact For Price

Part Number : EVF571
M12 connector ifm electronic EVF571

Sold out

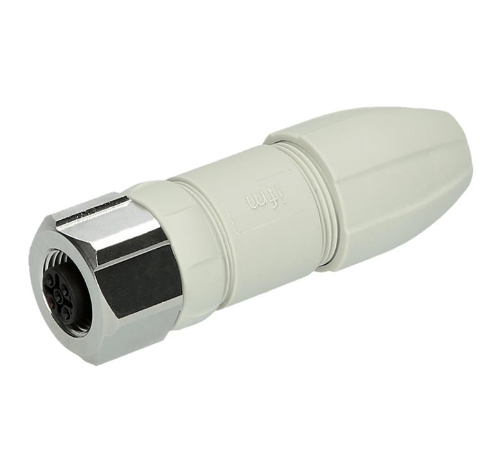

M12 connector ifm electronic EVF565
Contact For Price

Part Number : EVF565
M12 connector ifm electronic EVF565

Sold out

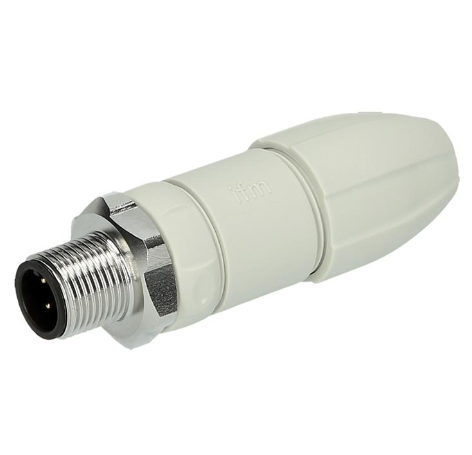

M12 connector ifm electronic EVF567
Contact For Price

Part Number : EVF567
M12 connector ifm electronic EVF567

Sold out

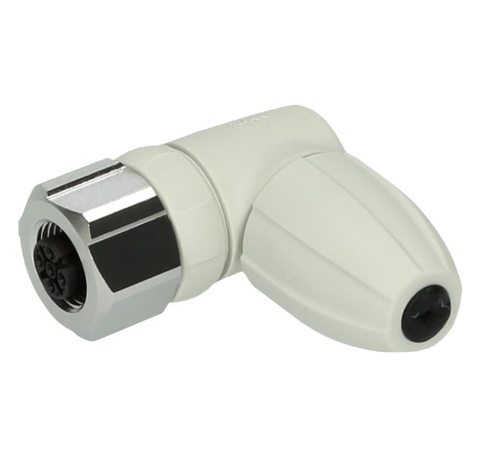

M12 connector ifm electronic EVF566
