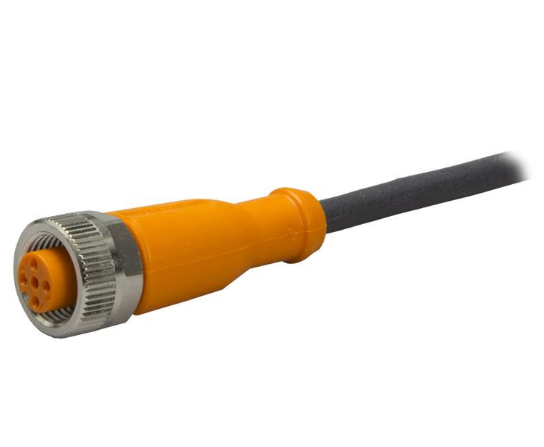

M12 Sensor cable ifm electronic EVC071
The 5-pole M12 sensor cable EVC071 from ifm is the optimum connection cable for sensors. The EVC071 sensor cable consists of a straight M12 socket and a 5 m PUR cable. The M12 coupling nut from diecast zinc is secured against shock and vibration due to saw tooth contoured vibration protection. The silicone-free and halogen-free sensor cable EVC071 with gold-plated contacts is resistant to oils and coolants. Thanks to the protection rating IP67/IP68/IP69K the M12 sensor cable EVC071 is ideal for use in factory automation and also in difficult applications.
- Specifications
- Features
- Downloads
| Dimensions | 15.5 x 15.5 x 45mm |
| Material | housing: TPU (urethane) orange; sealing: FKM |
| Operating voltage [V] | 30 AC/36 DC V |
| Protection class | II |
| System | Free from silicone; Halogen-free; gold-plated contacts; Drag chain suitability |
| Weight | 179.5g |
Resistant to oils and coolants
Permanent, reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction
