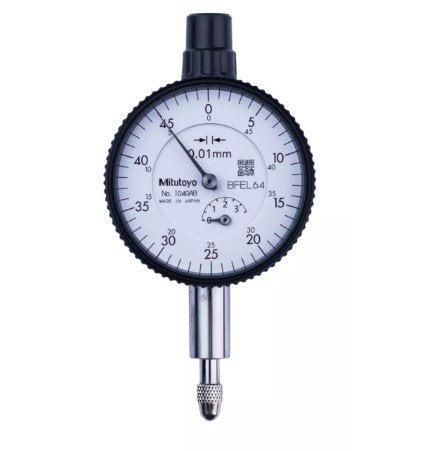

Mitutoyo 1040A | Dial Gauge| Lug Back | ISO Type | Series 1 | Graduation 0.01 mm | Range 3.5 mm
The Mitutoyo 1040A is a dependable dial gauge from Series 1, crafted for accurate and efficient dimensional inspection. With a measuring range of 3.5 mm, it is well-suited for a variety of general-purpose applications. Featuring a graduation of 0.01 mm, it provides clear, easy-to-read results for routine precision tasks. Built to ISO type standards, it meets global requirements for quality and consistency. Its lug back design offers flexible mounting options for different setups. Compact and durable, the 1040A is ideal for use in both workshop and inspection environments.

Free UAE shipping available
- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Dial Reading | +/-0 - 50 |
Graduation | 0.01 mm |
Hysteresis | 3 µm |
Inch-Metric | Metric |
Measuring Force | 0.4 - 1.4 N |
Measuring range | 12 µm |
Range | 3.5 mm |
Repeatability | 3 µm |
Series | 1 |
Stem Dia | 8 mm |
Thread type | M 2.5 x 0.45 mm |
Type | Dial Gauge |
Type | EN ISO Standard |
Weight | 90 g |
- Measuring Range: 3.5 mm for standard inspection applications
- Graduation: 0.01 mm for clear and simple readings
- Mounting: Lug back design for secure, adaptable mounting
- Standards: ISO type construction ensures global compatibility
- Design: Compact and sturdy for daily industrial use
- Series: Part of Series 1, known for precision and reliability
