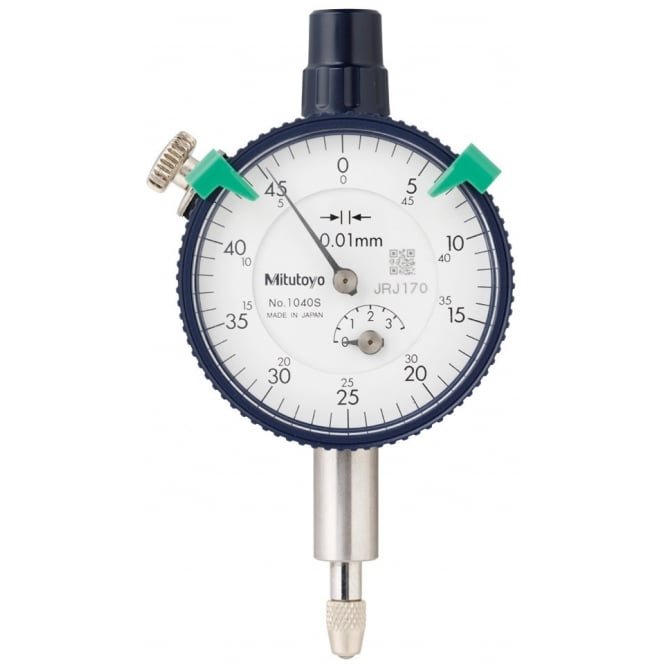

Mitutoyo 1040S | Compact Dial Indicator | 3.5 mm (0.5 mm), 0.01 mm, ±0-50
The Mitutoyo 1040S is a compact multi-revolution dial indicator with a 3.5 mm (0.5 mm) range, 0.01 mm graduation and a dual-reading ±0-50 dial. It is sized for restricted-space gauging fixtures.
- 3.5 mm (0.5 mm) range on the 1040S
- Dual-reading ±0-50 scale for measurement in both directions
- Graduation 0.01 mm
- Measuring force 1.4 N or less (1040S)
- Plunger type, non-digital
- Specifications
- Features
- Downloads
| Part Number | 1040S |
| Brand | Mitutoyo |
| Type | Compact Dial Indicator, plunger |
| Range | 3.5 mm (0.5 mm) |
| Graduation | 0.01 mm |
| Dial Reading | ±0-50 |
| Measuring Force | 1.4 N or less |
| Measuring Units | Millimetre |
| Data Output | No |
| Display Type | Non-digital |
Compact dial indicators with outer bezel diameters of 31 and 40 mm for restricted-space applications in gauging fixtures
