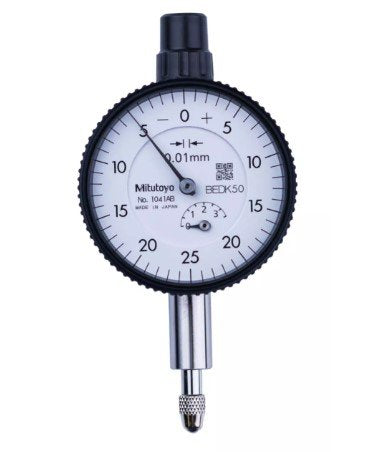

Mitutoyo 1041AB | Dial Gauge| Flat Back | ISO Type | Series 1 | Graduation 0.01 mm | Range 3.5 mm
The Mitutoyo 1041AB is a reliable and easy-to-use dial gauge from Series 1, built for precision measurements in everyday inspection tasks. It features a measuring range of 3.5 mm, making it suitable for a variety of general-purpose applications. With a graduation of 0.01 mm, it offers clear and quick readability for efficient operation. Conforming to ISO type standards, it ensures consistent performance and global compatibility. The flat back design allows for stable, flush mounting on surfaces and fixtures. Durable and practical, it’s a great choice for workshops and quality control labs.

- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Dial Reading | 0-25-0 |
Graduation | 0.01 mm |
Hysteresis | 3 µm |
Inch-Metric | Metric |
Measuring Force | 0.4 - 1.4 N |
Measuring range | 12 µm |
Range | 3.5 mm |
Repeatability | 3 µm |
Series | 1 |
Stem Dia | 8 mm |
Thread type | M 2.5 x 0.45 mm |
Type | Dial Gauge |
Type | EN ISO Standard |
Weight | 70 g |
- Measuring Range: 3.5 mm for general precision measurement tasks
- Graduation: 0.01 mm for clear and accurate readings
- Mounting: Flat back for stable, flush fixture installation
- Standards: ISO type construction for international use
- Design: Rugged and user-friendly for daily shop floor use
- Series: Part of Series 1, trusted for accuracy and durability
