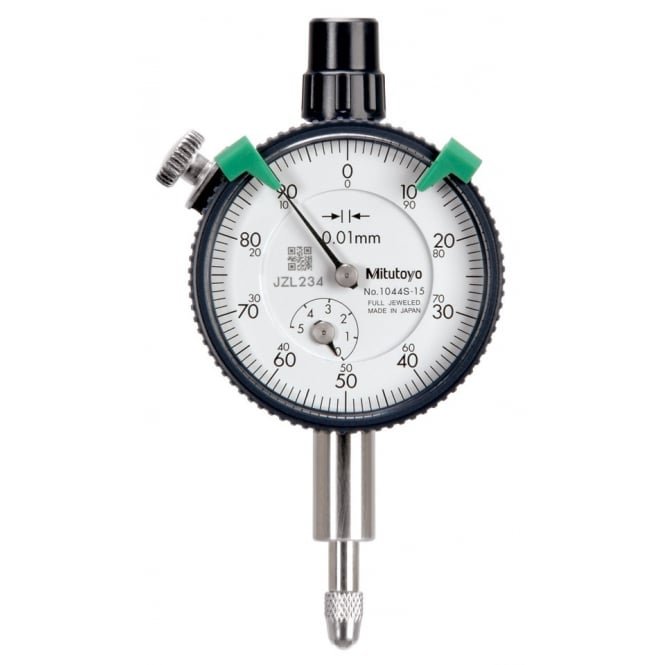

Mitutoyo 1044S-15 | Compact Dial Indicator | 5 mm (1 mm), 0.01 mm, 0.4 N
The Mitutoyo 1044S-15 is a compact multi-revolution dial indicator with a 5 mm (1 mm) range, 0.01 mm graduation and a low measuring force of 0.4 N or less. A jewelled movement gives smooth, precise operation.
- Low 0.4 N or less measuring force on the 1044S-15
- 5 mm (1 mm) range, 0.01 mm graduation (1044S-15)
- Bi-directional ±0-100 scale
- Jewelled movement for low friction and stiction
- Compact for restricted-space gauging fixtures
- Specifications
- Features
- Downloads
| Part Number | 1044S-15 |
| Brand | Mitutoyo |
| Type | Compact Dial Indicator, plunger |
| Range | 5 mm (1 mm) |
| Graduation | 0.01 mm |
| Dial Reading | ±0-100 |
| Measuring Force | 0.4 N or less |
| Measuring Units | Millimetre |
| Data Output | No |
| Display Type | Non-digital |
| Movement | Jewelled |
Use in a vertical orientation only (contact point downward).
Compact dial indicators with outer bezel diameters of 31 and 40 mm for restricted-space applications in gauging fixtures
