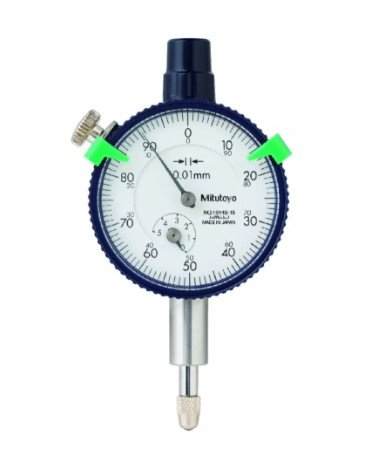

Mitutoyo 1044SB-15 | Dial Indicator| Flat Back | Juweled Bearing | Series 1 | Graduation 0.01 mm | Range 5 mm
The Mitutoyo 1044SB-15 is a durable and precise dial indicator from Series 1, ideal for general-purpose inspection tasks. It features a measuring range of 5 mm, providing versatility for various dimensional checks. With a graduation of 0.01 mm, it ensures clear, accurate readings for consistent performance. The inclusion of a jeweled bearing offers smooth pointer movement and long-term durability, even under frequent use. Its flat back design supports stable and secure mounting on fixtures and surfaces. Built to Mitutoyo’s high standards, this indicator is perfect for workshop and quality assurance applications.

Free UAE shipping available
- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Functions | ISO type |
Graduation | 0.01 mm |
Hysteresis | 3 µm |
Inch-Metric | Metric |
Measuring range | 12 µm |
Range | 5 mm |
Repeatability | 3 µm |
Stem Dia | 8 mm |
Thread type | M 2.5 x 0.45 mm |
Type | Dial Indicator |
Weight | 70 g |
- Measuring Range: 5 mm for a wide range of measurement tasks
- Graduation: 0.01 mm for easy-to-read, precise readings
- Bearing Type: Jeweled bearing for smooth and durable operation
- Mounting: Flat back for stable and flush surface installation
- Series: Part of Mitutoyo Series 1, known for reliability and precision
- Design: Rugged build ideal for workshop and QC environments
