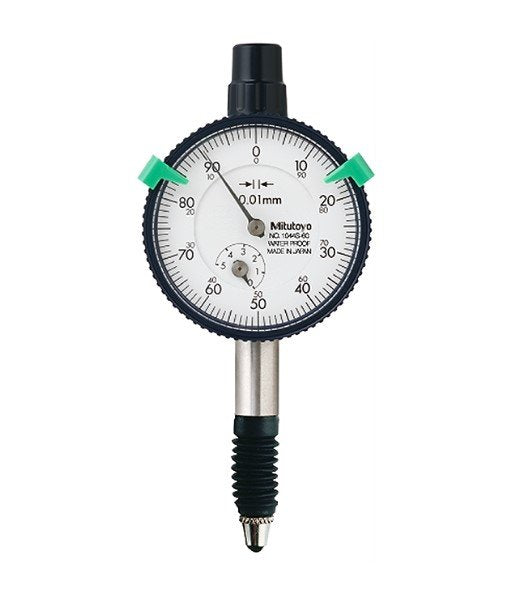

Mitutoyo 1044SB-60 | Dial Indicator | Flat Back | Series 1 | Graduation 0.01 mm | Range 5 mm
The Mitutoyo 1044SB-60 is a rugged and dependable dial indicator from Series 1, designed for precision measurement in demanding environments. It features a flat back design, enabling secure and stable mounting on various fixtures and surfaces. Built to withstand shop-floor conditions, it comes with a protection rating of IP63, offering resistance against dust and water spray. This makes it suitable for use in areas where exposure to contaminants is common. The dial delivers clear, consistent readings, ideal for both inspection and production tasks. With Mitutoyo's trusted engineering, it's a solid choice for durable performance.

- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Functions | ISO type |
Graduation | 0.01 mm |
Hysteresis | 3 µm |
Inch-Metric | Metric |
Measuring range | 12 µm |
Range | 5 mm |
Repeatability | 3 µm |
Series | 1 |
Stem Dia | 8 mm |
Thread type | M 2.5 x 0.45 mm |
Type | Dial Indicator |
Weight | 70 g |
- Mounting: Flat back for flush, secure installation on surfaces
- Protection: IP63 rating for dust resistance and water spray protection
- Durability: Built for tough environments like workshops and production lines
- Display: Easy-to-read dial with smooth, precise pointer movement
- Series: Part of Mitutoyo’s Series 1, known for reliability and accuracy
- Application: Ideal for general inspection in harsh working conditions
