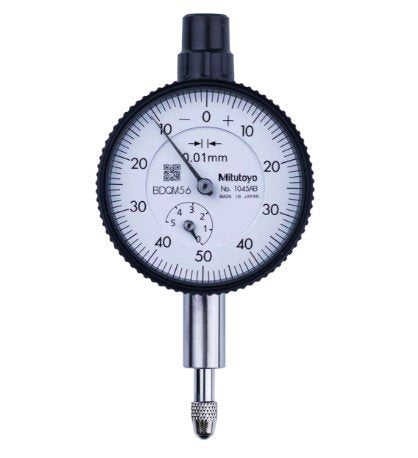

Mitutoyo 1045AB | Dial Gauge | Flat Back | ISO Type | Series 1 | Graduation 0.01 mm | Range 5mm
The Mitutoyo 1045AB is a reliable dial gauge from Series 1, designed for precise measurement tasks in various inspection environments. It offers a measuring range of 5 mm, making it ideal for standard dimensional checks. With a graduation of 0.01 mm, it provides easy-to-read and accurate results. Built to ISO type standards, this gauge ensures consistent performance that meets international quality requirements. Its flat back design allows for stable and flush mounting on fixtures or surfaces. Durable and user-friendly, the 1045AB is perfect for both workshop and laboratory use.

Free UAE shipping available
- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Dial Reading | 0-50-0 |
Graduation | 0.01 mm |
Hysteresis | 3 µm |
Inch-Metric | Metric |
Measuring Force | 0.4 - 1.4 N |
Measuring range | 12 µm |
Range | 5 mm |
Repeatability | 3 µm |
Series | 1 |
Stem Dia | 8 mm |
Thread type | M 2.5 x 0.45 mm |
Type | Dial Gauge |
Type | EN ISO Standard |
Weight | 70 g |
- Measuring Range: 5 mm for a wide range of general applications
- Graduation: 0.01 mm for precise, easy-to-read measurements
- Mounting: Flat back for stable fixture or surface installation
- Standards: ISO type construction ensures international compatibility
- Design: Robust and ergonomic for daily inspection use
- Series: Part of Mitutoyo Series 1, known for accuracy and reliability
