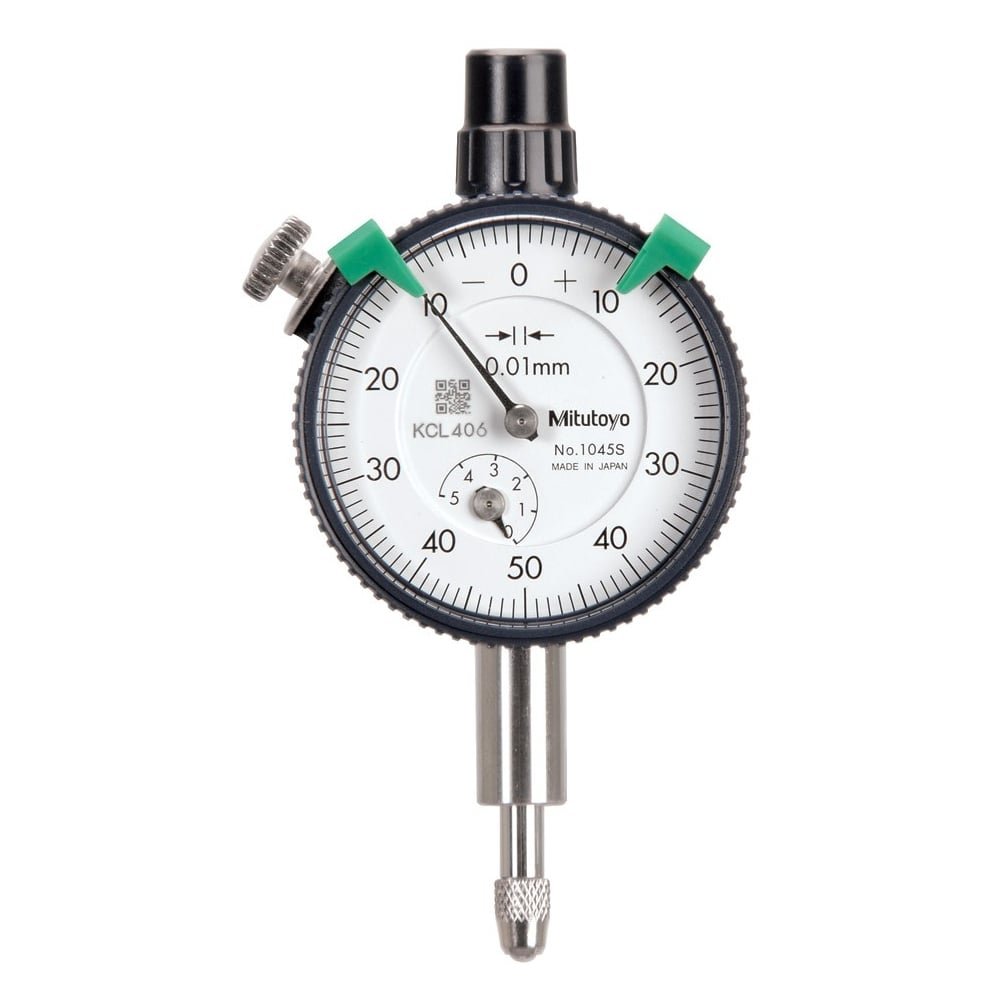

Mitutoyo 1045S | Compact Dial Indicator | 5 mm Range, 0.01 mm Graduation
Mitutoyo's 1045S compact dial indicator reads in 0.01 mm steps across a 5 mm range. The 1045S is suited to comparison measurement. Mitutoyo places the 1045S in its compact range, with 31 and 40 mm bezel sizes for restricted-space use in gauging fixtures. Mitutoyo lists the 1045S range as 5 mm (1 mm).
- Dial reading 0-50-0, listed range 5 mm (1 mm)
- Multi-revolution dial
- Measuring force 1.4 N or less
Credit purchase may have different price*
- Specifications
- Features
- Downloads
| Part Number | 1045S |
| Brand | Mitutoyo |
| Type | Compact Dial Indicator |
| Range | 5 mm (1 mm) |
| Graduation | 0.01 mm |
| Dial Reading | 0-50-0 |
| Measuring Force | 1.4 N or less |
| Units | Metric |
Compact dial indicators with outer bezel diameters of 31 and 40 mm for restricted-space applications in gauging fixtures.
