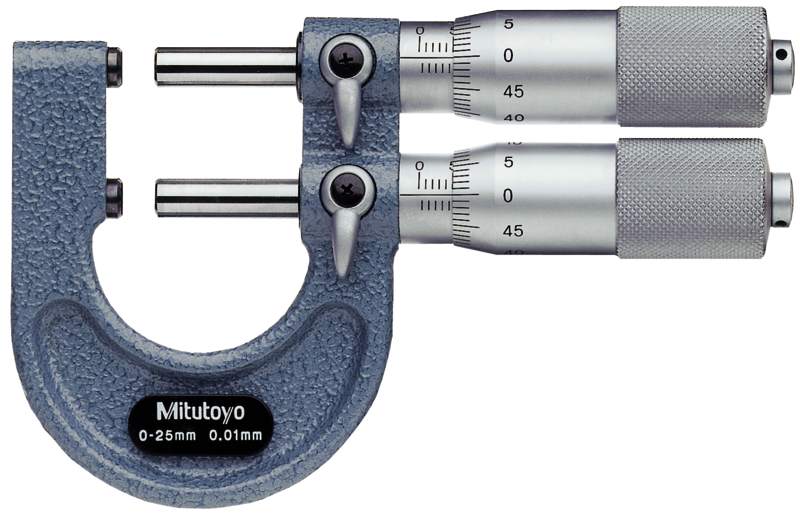

Name: Mitutoyo 113-102 Limit Micrometer 0-25mm
Brand: Mitutoyo
SKU: 113-102
Availability: OutOfStock

Part Number : 113-102

This Limit Micrometer offers the following benefits:

Spindle and Anvil with chamfered edge.
You can use it as a GO/±NG gauge by setting the upper and lower limits of dimension.

Availability: Sold out

Free UAE shipping available

Accuracy	+/-3 µm
Analog/Digital	Analog
Delivered	Including box, setting standard (from 25 mm upward), key
Flatness	0.6 µm
Graduation	0.01 mm
Inch-Metric	Metric
Mass (main unit)	340 g
Measuring spindle	With spindle lock, ƒ ̧6.35 mm, spindle pitch 0.5 mm
Measuring surfaces	Carbide-tipped micro-lap finish, with chamfer
Parallelism	(3+L/100) µm, L = max. range (mm)
Range	0 - 25 mm
Scale	Thimble and sleeve satin chrome finish, ƒ ̧18 mm

This Limit Micrometer offers the following benefits:

Spindle and Anvil with chamfered edge.
You can use it as a GO/±NG gauge by setting the upper and lower limits of dimension.
