Mitutoyo 116-102 Universal Micrometer Interchangeable Avil/Spindle, 25-50mm

Name: Mitutoyo 116-102 Universal Micrometer Interchangeable Avil/Spindle, 25-50mm
Brand: Mitutoyo
SKU: 116-102
Availability: OutOfStock

Part Number : 116-102

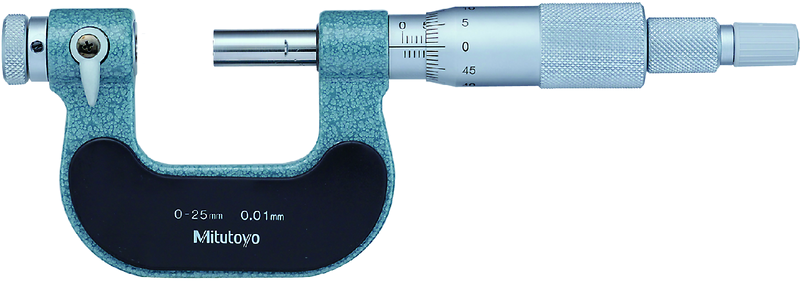

This Universal Micrometer should be used with optional interchangeable tips. It offers you the following benefits:

Its non-rotating spindle accepts seven forms of optional interchangeable anvil/spindle tip
(including flat, spline, spherical, point, knife-edge, disc, and blade) allowing you to use it in a wide range of applications.
Optional anvils/spindle-tips for screw thread measurement (matching V and cone) are also
available.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-4 µm
Analog/Digital	Analog
Delivered	Including box, plain and 60° thread, setting standard (from 25.0 mm upward), key without interchangeable tips
Graduation	0.01 mm
Inch-Metric	Metric
Mass (main unit)	300 g
Measuring spindle	ƒ ̧8 mm, non rotating, spindle pitch 0.5 mm
Range	25 - 50 mm
Scale	Thimble and sleeve satin chrome finish, ƒ ̧18 mm

This Universal Micrometer should be used with optional interchangeable tips. It offers you the following benefits:

Its non-rotating spindle accepts seven forms of optional interchangeable anvil/spindle tip
(including flat, spline, spherical, point, knife-edge, disc, and blade) allowing you to use it in a wide range of applications.
Optional anvils/spindle-tips for screw thread measurement (matching V and cone) are also
available.
