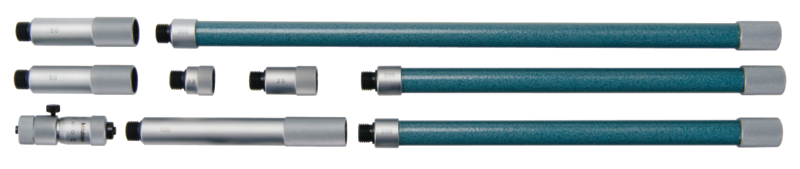

Mitutoyo 137-204 Tubular Inside Micrometer, Hardened Face 50-1000mm
This is an extension rod type inside micrometer that offers you the following benefits:
- Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
- Carbide measuring faces are available.
Credit purchase may have different price*
- Specifications
- Features
- Downloads
| Accuracy | +/-(3+n+L/50) µm n = Number of rod, L = Maximum measuring length (mm) |
| Analog/Digital | Analog |
| Delivered | Including box, key |
| Extension rod | 8 (13, 25, 50 (2 pcs.), 100, 200 (2 pcs.), 300 mm) |
| Extension | : ƒ ̧12.5 mm |
| Graduation | 0.01mm |
| Inch-Metric | Metric |
| Mass (main unit) | 845 g |
| Measuring span | 13 mm or 0.5 |
| Measuring spindle | Spindle pitch 0.5 mm |
| Measuring surfaces | Hardened steel |
| Range | 50 - 1000 mm |
This is an extension rod type inside micrometer that offers you the following benefits:
- Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
- Carbide measuring faces are available.
