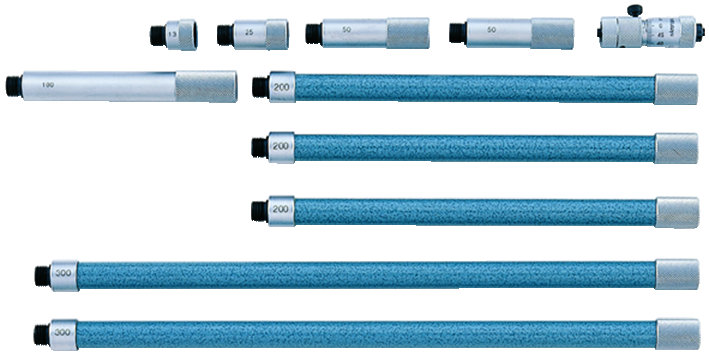

Name: Mitutoyo 137-209 Tubular Inside Micrometer Carbide Tipped 50-1000mm
Brand: Mitutoyo
SKU: 137-209
Availability: OutOfStock

Part Number : 137-209

This is an extension rod type inside micrometer that offers you the following benefits:

Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
Carbide measuring faces are available.

Availability: Sold out

Accuracy	+/-(3+n+L/50) µm n = Number of rod, L = Maximum measuring length (mm)
Analog/Digital	Analog
Delivered	Including box, key
Extension rod	8 (13, 25, 50 (2 pcs.), 100, 200 (2 pcs.), 300 mm)
Extension	: ƒ ̧12.5 mm
Graduation	0.01mm
Inch-Metric	Metric
Mass (main unit)	845 g
Measuring span	13 mm or 0.5
Measuring spindle	Spindle pitch 0.5 mm
Measuring surfaces	Carbide
Range	50 - 1000 mm

This is an extension rod type inside micrometer that offers you the following benefits:

Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
Carbide measuring faces are available.

Mitutoyo 137-209 Tubular Inside Micrometer Carbide Tipped 50-1000mm
