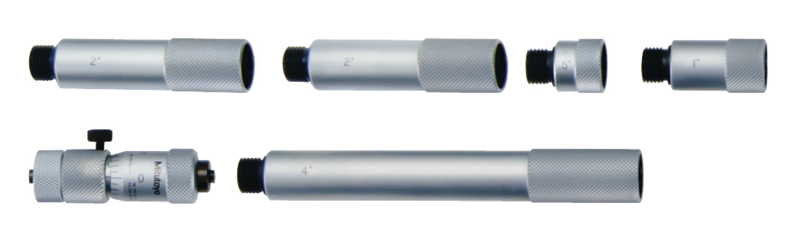

Mitutoyo 137-212 Tubular Inside Micrometer, Hardened Face 2-12"
This is an extension rod type inside micrometer that offers you the following benefits:
- Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
- Carbide measuring faces are available.
- Specifications
- Features
- Downloads
Accuracy | +/-[0,00015+0,00005n+0,00005(L/2)] |
Analog/Digital | Analog |
Delivered | Including box, key |
Extension rod | 5 (0.5, 1, 2 (2 pcs.), 4 |
Extension | : ƒ ̧12.5 mm |
Graduation | 0.001 |
Inch-Metric | Inch |
Mass (main unit) | 305 g |
Measuring span | 13 mm or 0.5 |
Measuring spindle | Spindle pitch 0.635 mm |
Measuring surfaces | Hardened steel |
This is an extension rod type inside micrometer that offers you the following benefits:
- Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
- Carbide measuring faces are available.
