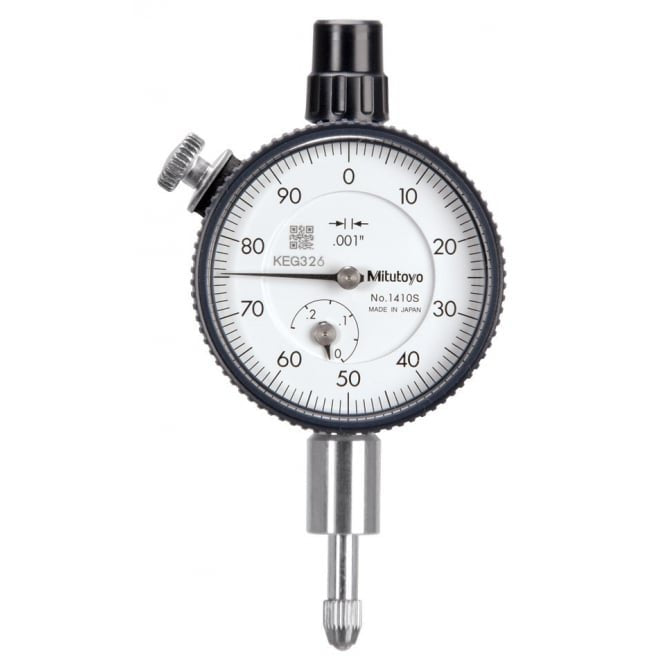

Mitutoyo 1410S | Compact Dial Indicator | 0.25 in Range, 0.001 in Graduation
With 0.001 in graduations over a 0.25 in range, the Mitutoyo 1410S is a compact dial indicator for general measurement. The 1410S is part of the compact range with 31 and 40 mm bezel sizes for restricted-space use in gauging fixtures. Mitutoyo lists the 1410S range as 0.25 in (0.1 in). The 1410S reads in inch units on a 0-100 dial.
- Dial reading 0-100, listed range 0.25 in (0.1 in)
- Multi-revolution dial
- Measuring force 1.4 N or less
- Specifications
- Features
- Downloads
| Part Number | 1410S |
| Brand | Mitutoyo |
| Type | Compact Dial Indicator |
| Range | 0.25 in (0.1 in) |
| Graduation | 0.001 in |
| Dial Reading | 0-100 |
| Measuring Force | 1.4 N or less |
| Units | Inch |
Compact dial indicators with outer bezel diameters of 31 and 40 mm for restricted-space applications in gauging fixtures
