Mitutoyo 143-109 Caliper Jaw Micrometer 200-225mm

Name: Mitutoyo 143-109 Caliper Jaw Micrometer 200-225mm
Brand: Mitutoyo
SKU: 143-109
Availability: OutOfStock

Part Number : 143-109

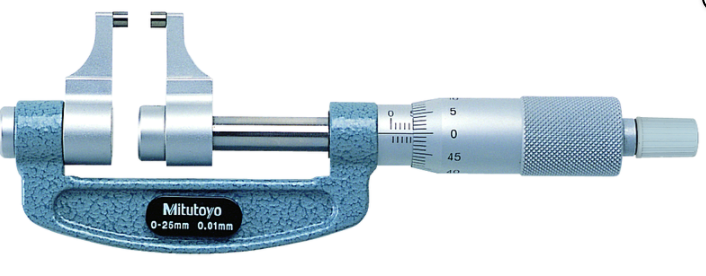

This Caliper Jaw Micrometer has been specially designed for measuring in hard-to-reach places.

When accessing workpiece features is challenging, this method works well.
• Carbide measuring faces, with a ratchet stop for constant measuring force.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-11 µm
Analog/Digital	Analog
Delivered	Including box, setting standard, key
Flatness	0.3 1/4m
Graduation	0.01 mm
Inch-Metric	Metric
Mass (main unit)	690 g
Measuring spindle	ƒ ̧8 mm, spindle pitch 0.5 mm
Measuring surfaces	Carbide-tipped, micro-lap finish
Parallelism	(3+L/75) µm (mm)
Range	200 - 225 mm
Scale	Thimble and sleeve satin chrome finish, ƒ ̧18 mm

This Caliper Jaw Micrometer has been specially designed for measuring in hard-to-reach places.

When accessing workpiece features is challenging, this method works well.
• Carbide measuring faces, with a ratchet stop for constant measuring force.
