Mitutoyo 146-125 Groove Micrometer, Rotating Spindle 75-100mm, 12.7mm Flange

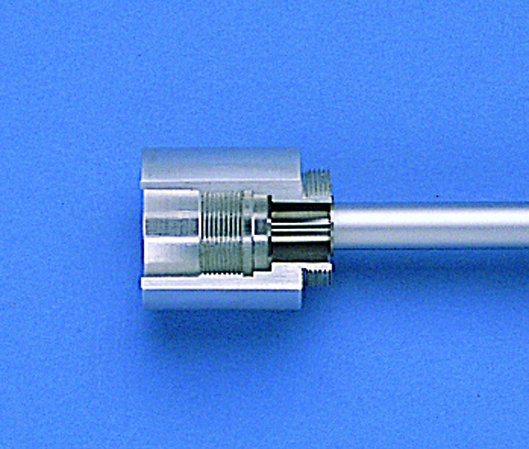

This Internal Groove Micrometer is designed to measure the width and location of grooves cut into bore walls.
It offers the following features:
- Two-directional ratchet stop.
- Non-rotating spindle models are also available.
- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Delivered | Including box, key |
Graduation | 0.01 mm |
Inch-Metric | Metric |
Mass (main unit) | 160 g |
Measuring spindle | Spindle pitch 0.5 mm |
Range Inside | 76.5-101.5 mm |
Range Outside | 75-100 mm |
Scale | Thimble and sleeve satin chrome finish, ƒ ̧18 mm |
This Internal Groove Micrometer is designed to measure the width and location of grooves cut into bore walls.
It offers the following features:
- Two-directional ratchet stop.
- Non-rotating spindle models are also available.
