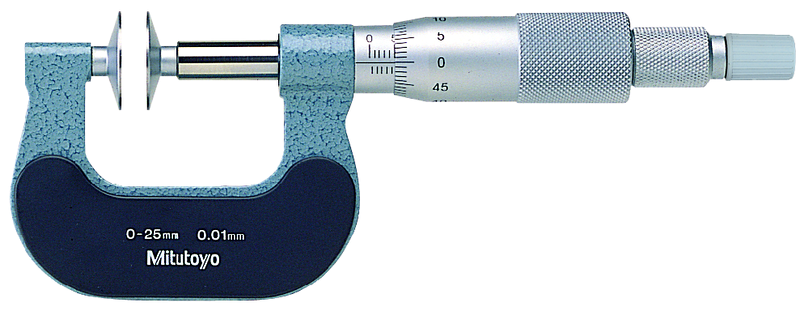

Name: Mitutoyo 169-202 Disc Micrometer, Non-Rotating Spindle 25-50mm, Disk=20mm
Brand: Mitutoyo
SKU: 169-202
Availability: OutOfStock

Part Number : 169-202

This Disc Micrometer has a non-rotating spindle and allows you measure a range of different materials.
It offers you the following benefits:

It features a non-rotating spindle and disc-shaped measuring surfaces.
Measuring the root tangent length of spur and helical gears
Measurable range of gear pitch: 0,5-6 module
It‘s suitable for measuring materials such as felt, rubber, cardboard and fabric.

Availability: Sold out

Free UAE shipping available

Accuracy	+/-4 µm
Analog/Digital	Analog
Delivered	Including box, key
Flatness	1 µm
Graduation	0.01 mm
Inch-Metric	Metric
Mass (main unit)	280 g
Measuring Force	8.02 N +/- 0.8 N
Measuring spindle	ƒ ̧8 mm, non-rotating, spindle pitch 0.5 mm
Parallelism	4 µm
Range	25 - 50 mm
Scale	Thimble and sleeve satin chrome finish, ƒ ̧18 mm

This Disc Micrometer has a non-rotating spindle and allows you measure a range of different materials.
It offers you the following benefits:

It features a non-rotating spindle and disc-shaped measuring surfaces.
Measuring the root tangent length of spur and helical gears
Measurable range of gear pitch: 0,5-6 module
It‘s suitable for measuring materials such as felt, rubber, cardboard and fabric.
