Part Number : 170-101-10

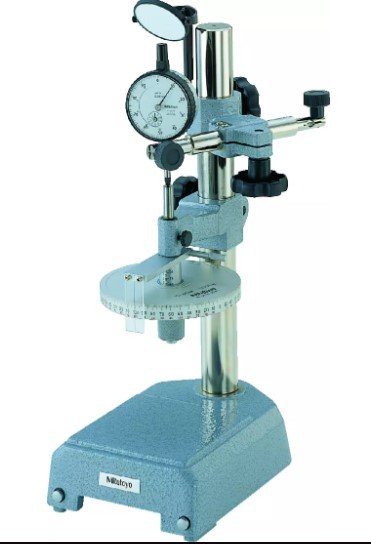

The Mitutoyo 170-101-10 Dial Indicator Tester from Series 170 is designed for highly accurate measurements in inches, with a graduation of 0.0001 inch. It has a measuring range of 0 to 1 inch, making it ideal for testing roundness, runout, and concentricity in precision applications. With a mass of 7.5 kg, it offers stability during use, ensuring consistent and reliable measurements. The tester is perfect for quality control, machine setup, and other tasks requiring precise displacement measurement. Its rugged construction ensures durability in industrial environments.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Graduation	0.0001 Inch
Inch-Metric	Inch
Mass (main unit)	7.5 kg
Measuring Force	Carbide-tipped
Range	0 - 1 Inch
Series	170
Type	Dial Indicator Tester

High Precision: Provides a graduation of 0.0001 inch, ensuring extremely accurate measurements for fine tolerance applications.
Wide Measurement Range: Offers a range of 0 to 1 inch, making it suitable for various testing tasks, such as roundness and runout measurements.
Sturdy Construction: Weighs 7.5 kg, providing excellent stability and reducing the risk of vibration during use, ensuring reliable readings.
Inch Scale: Equipped with an inch scale, making it ideal for applications in regions or industries where imperial units are the standard.
Durability: Designed for long-term use in industrial environments, this tester is built to withstand the rigors of daily precision measurement tasks.

DOWNLOAD CATALOG

Mitutoyo 170-101-10 | Dial Indicator Tester | Series 170 | Inch | Graduation 0.0001 inch | Range 0 to 1 inch | Mass 7.5 kg

Mitutoyo 170-102-12 | Dial Indicator Tester | Series 170 | Metric | Graduation 0.001 mm | Range 0 to 25 mm | Mass 7.5 kg

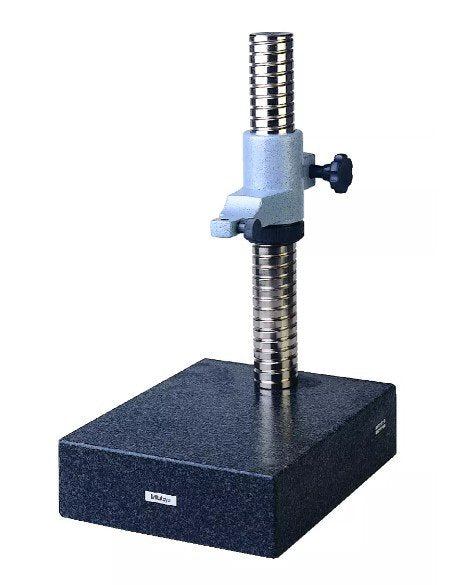

Mitutoyo 215-156-10 | Gauge Stand with Granite Base | Series 215 | Column Diameter 50 mm | Maximum Measurement Height 300 mm | Fine adjustment 1 mm

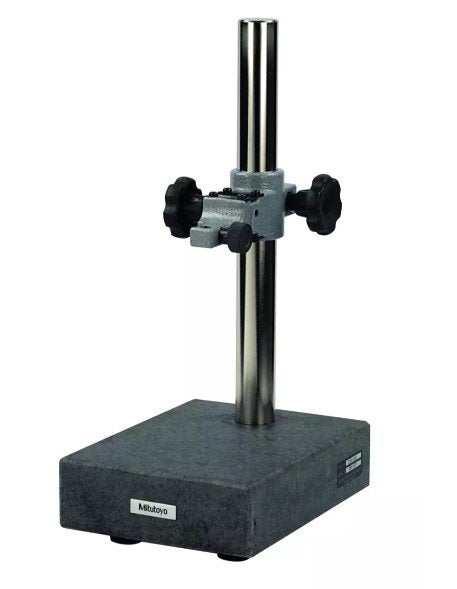

Mitutoyo 215-151-10 | Gauge Stand with Granite Base | Series 215 | Column Diameter 30 mm | Maximum Measurement Height 260 mm | Fine adjustment 1 mm

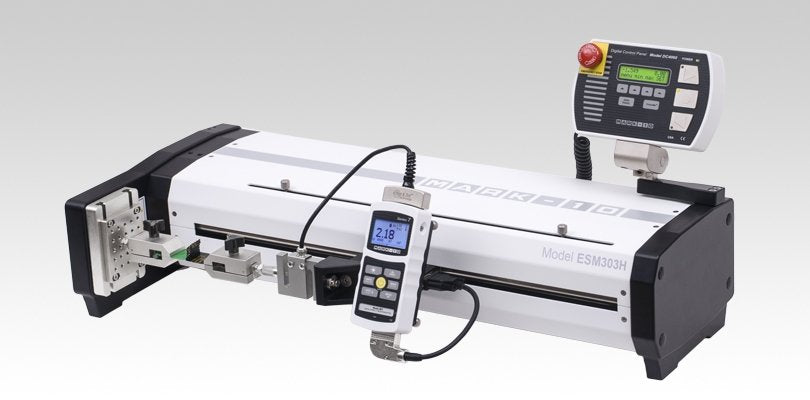

Mark 10 ESM303H | Motorized Tension / Compression Test Stand -Force measurement to 300 lbF (1.5 kN)

Mark 10 ESM750 | - Motorized Tension / Compression Test Stand -Force measurement to 750 lbF (3.4 kN)

Mark 10 ESM1500S | ESM1500S Motorized Tension / Compression Test Stand Stand w/PC Control, Force measurement to 1,500 lbF (6.7 kN)

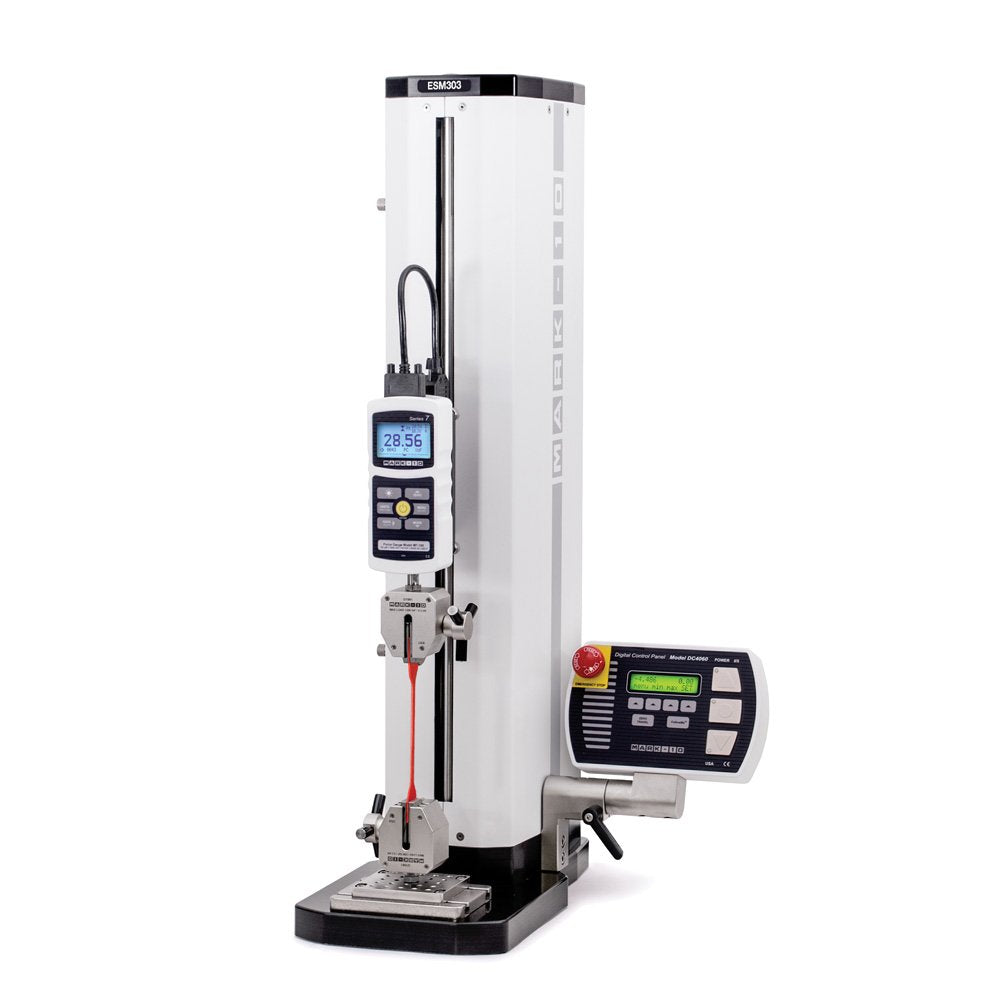

Mark 10 ESM 303- Motorized Tension / Compression Test Stand Stand w/PC Control
