Part Number : 191-561

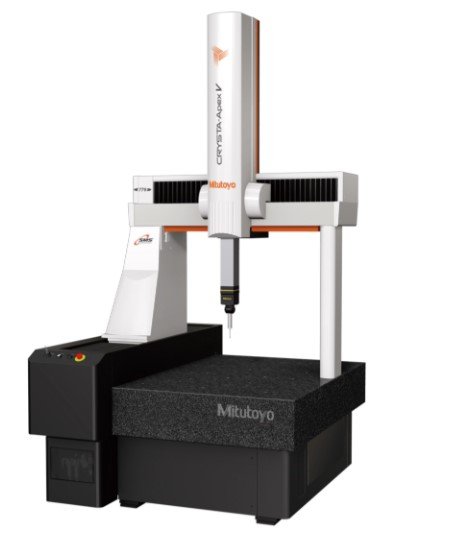

The Mitutoyo 191-561 CRYSTA-Apex V776 is a high-precision CNC coordinate measuring machine designed for inspecting medium to large-sized components. It offers a generous measuring range of 700 x 700 x 600 mm, accommodating a wide variety of parts. Built with a rigid granite base, it ensures stability and accuracy during measurements. The machine's air-bearing guideways and linear encoders provide smooth motion and high-resolution feedback. Ideal for quality control and manufacturing environments, it supports advanced probing systems and integrates with Mitutoyo’s MCOSMOS software for comprehensive data analysis.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	E0, MPE from: (1,7+0,3L/100) µm
Air Supply	Pressure = 0,4 MPa
Depth	1700 mm
Height	2,730 mm
Height	Loading Height: 800 mm
Mass (main unit)	1,675 kg
Model Number	CRYSTA-Apex V776
Range	700 x 700 x 600 mm
Series	191
Weight	Loading Weight: 800 kg
Width	1,470 mm

Measuring Range of 700 x 700 x 600 mm: Suitable for medium to large-sized components.
High Accuracy: Achieves E0, MPE = (1.7 + 0.3L/100) µm, ensuring precise measurements.
High-Speed Performance: Maximum travel speed of 519 mm/s and 3D acceleration up to 2,309 mm/s².
Temperature Compensation: Maintains accuracy within a 16°C to 26°C ambient temperature range.
Advanced Probing Compatibility: Supports various probing systems for versatile measurement options.
Smart Factory Integration: Features Smart Measuring System (SMS) capabilities for enhanced connectivity and monitoring.

DOWNLOAD CATALOG
