Mitutoyo 191-584 | CRYSTA-Apex V9108 | With Anti-vibration stand | Series V900 | Width 1,670 mm | Depth 2000 mm | Height 3,130 mm | Range 900 x 1000 x 800 mm

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : 191-584

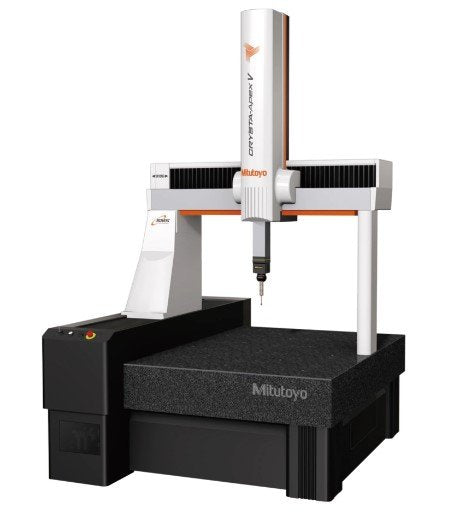

The Mitutoyo 191-584 CRYSTA-Apex V9108 is a high-precision CNC coordinate measuring machine designed for inspecting large components. It offers an expanded measuring range of 900 x 1000 x 800 mm, accommodating a wide variety of parts. Built with a rigid granite base, it ensures stability and accuracy during measurements. The machine's air-bearing guideways and linear encoders provide smooth motion and high-resolution feedback. Ideal for quality control and manufacturing environments, it supports advanced probing systems and integrates with Mitutoyo’s MCOSMOS software for comprehensive data analysis.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	E0, MPE from: (1,7+3L/1000) µm
Air Supply	Pressure = 0.4 MPa
Depth	2000 mm
Height	3.130 mm
Height	Loading Height: 545 mm
Mass (main unit)	2.401 kg
Model Number	CRYSTA-Apex V9108
Range	900 x 1000 x 800 mm
Series	V900
Width	1.670 mm

Measuring Range of 900 x 1000 x 800 mm: Suitable for large-sized components.
High Accuracy: Achieves E0, MPE = (1.7 + 0.3L/1000) µm, ensuring precise measurements.
High-Speed Performance: Maximum travel speed of 519 mm/s and 3D acceleration up to 2,309 mm/s².
Temperature Compensation: Maintains accuracy within a 16°C to 26°C ambient temperature range.
Advanced Probing Compatibility: Supports various probing systems for versatile measurement options.
Granite Base: Provides rigidity and vibration resistance for enhanced measurement stability.
MCOSMOS Software Integration: Enables advanced data analysis and reporting capabilities.
