Part Number : 191-587

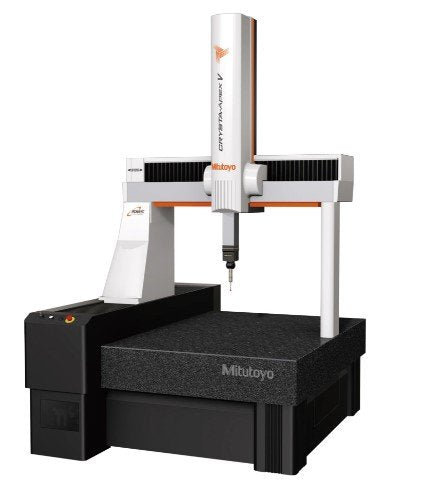

The Mitutoyo 191-587 CRYSTA-Apex V9168 is a high-precision CNC coordinate measuring machine (CMM) from the V900 series. It offers a large measurement range of 900 x 1600 x 800 mm, suitable for complex and sizable workpieces. With dimensions of 1,670 mm in width, 2,740 mm in depth, and 3,130 mm in height, it fits mid- to large-scale inspection environments. The CRYSTA-Apex V9168 ensures accuracy with advanced temperature compensation and a stable structure. It is ideal for automotive, aerospace, and high-precision manufacturing applications.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	E0, MPE from: (1,7+0,3L/100) µm
Air Supply	Pressure = 0.4 MPa
Depth	2740 mm
Height	3.130 mm
Height	Loading Height: 1.000 mm
Mass (main unit)	2.898 kg
Model Number	CRYSTA-Apex V9168
Range	900 x 1600 x 800 mm
Series	V900
Weight	Loading Weight: 1.500 kg
Width	1.670 mm

High Accuracy and Speed – Delivers rapid, precise measurements with a drive speed of up to 519 mm/s and acceleration of 2,309 mm/s².
Large Measurement Range – Offers a working volume of 900 x 1600 x 800 mm, ideal for inspecting large and complex parts.
Thermal Compensation System – Maintains measurement accuracy in environments from 16°C to 26°C with advanced temperature sensors.
Smart Factory Integration – Supports real-time monitoring and data management via MeasurLink®, Status Monitor, and Condition Monitor.
Flexible Probe Support – Compatible with multiple probe types (touch-trigger, scanning, non-contact) for versatile inspection tasks.
Operator-Friendly Design – Features Quick Launcher for easy operation and reduced training time.
