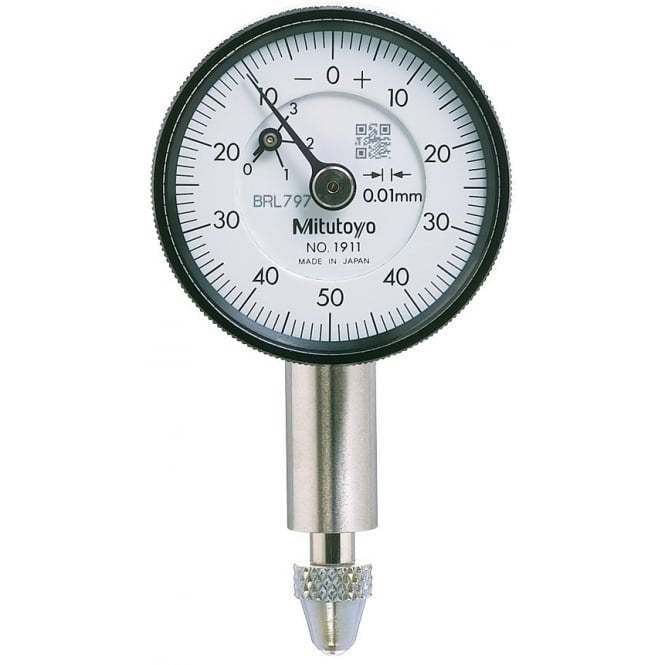

Mitutoyo 1911B Compact Dial Indicator 2.5mm (1mm)
A Mitutoyo multi-revolution dial indicator suited to comparison measurement applications. This is a compact, metric dial indicator. It is ideal for use in applications where space is limited.

- Specifications
- Features
- Downloads
Accuracy | +/-12 |
Brand | Mitutoyo |
Data Output | No |
Dial Reading | 0-50-0 |
Display Type | Non-digital |
Graduations | 0.01mm |
Measuring Force | 1.8N or less |
Measuring Units | Millimetre |
Range | 2.5mm (1mm) |
SKU | 1911B |
Type | Plunger |
This is a compact, metric dial indicator. It is ideal for use in applications where space is limited.
