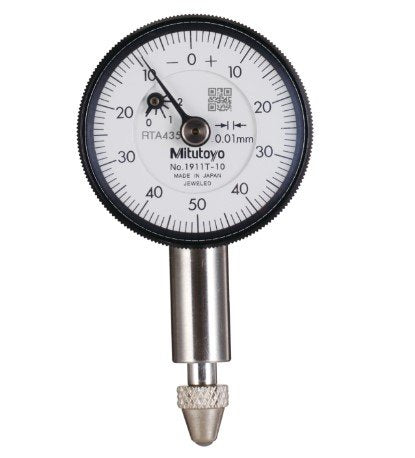

Mitutoyo 1911T-10 | Dial Indicator | Lug Back | Jeweled Bearing | Series 1 | Graduation 0.01 mm | Accuracy ±.012 mm | Range 2.5 mm
The Mitutoyo 1911T-10 is a high-precision dial indicator from Series 1, crafted for fine measurement tasks with enhanced durability. It features a measuring range of 2.5 mm, suitable for short-range, high-accuracy applications. With a graduation of 0.01 mm, it offers clear and easy-to-read values. The indicator delivers accuracy of ±0.012 mm, ensuring consistent and trustworthy results. A jeweled bearing enhances sensitivity and smooth pointer movement, even with extended use. The lug-back design provides secure mounting, making it ideal for both workshop and inspection environments.

Free UAE shipping available
- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide Tipped |
Functions | ISO type |
Graduation | 0.01 mm |
Hysteresis | 3.5 µm |
Inch-Metric | Metric |
Measuring range | 13 µm |
Range | 2.5 mm |
Repeatability | 3 µm |
Series | 1 |
Stem Dia | 8 mm |
Thread form | M 2.5 x 0.45 mm |
Type | Dial Indicator |
Weight | 50 g |
- Measuring Range: 2.5 mm for short-range precision measurements
- Graduation: 0.01 mm for easy-to-read dial increments
- Accuracy: ±0.012 mm for high-accuracy performance
- Bearing Type: Jeweled bearing for smooth, long-lasting operation
- Mounting: Lug back design for flexible and stable attachment
- Series: Part of Series 1, trusted for precision and durability
