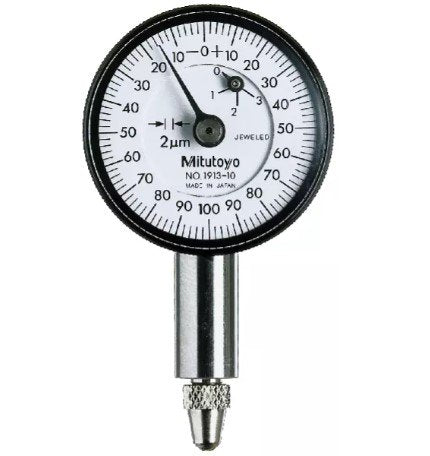

Mitutoyo 1913T-10 | Dial Indicator | Lug Back | Jeweled Bearing | Series 1 | Graduation 0.002 mm | Accuracy ±0.006 mm | Range 0.5 mm
The Mitutoyo 1913T-10 is a high-precision dial indicator from Series 1, engineered for ultra-fine measurements in critical applications. It features a measuring range of 0.5 mm, ideal for short-range, high-accuracy tasks. With an extremely fine graduation of 0.002 mm, it offers excellent readability and control. The indicator provides accuracy of ±0.006 mm, making it suitable for sensitive inspection work. A jeweled bearing ensures smooth, long-lasting performance with minimal friction. The lug-back design allows for stable and versatile mounting in various setups.

Free UAE shipping available
- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide Tipped |
Graduation | 0.002 mm |
Hysteresis | 2.5 µm |
Inch-Metric | Metric |
Measuring range | 6 µm |
Range | 0.5 mm |
Repeatability | 1 µm |
Series | 1 |
Stem Dia | 8 mm |
Thread type | M 2.5 x 0.45 mm |
Type | Dial Indicator |
Weight | 50 g |
- Measuring Range: 0.5 mm for ultra-precise short-range measurements
- Graduation: 0.002 mm for extremely fine resolution and clarity
- Accuracy: ±0.006 mm for high-precision inspection tasks
- Bearing Type: Jeweled bearing for smooth, wear-resistant operation
- Mounting: Lug back for secure and adaptable positioning
- Series: Part of Series 1, trusted for fine mechanical precision
