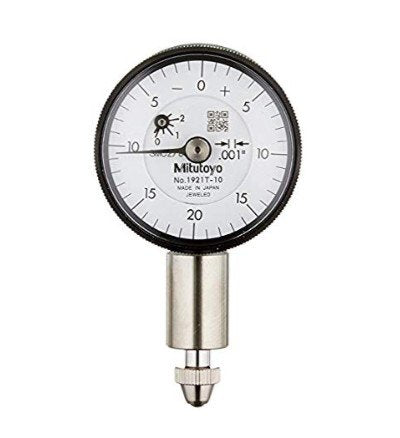

Mitutoyo 1921A-10 | Dial Gauge | Lug Back | Series 1 | ANSI/AGD Type | Jewelled Bearing | Graduation 0.001 inch | Range 0.1 inch
The Mitutoyo 1921A-10 is a finely crafted dial gauge from Series 1, built for precision measurement in imperial units. It offers a measuring range of 0.1 inch, making it ideal for close-tolerance applications. With a graduation of 0.001 inch, it provides sharp, easy-to-read measurement resolution. A jeweled bearing ensures exceptionally smooth pointer movement and long-lasting durability. The lug back design allows flexible and secure mounting across various setups. Built to ANSI/AGD type standards, it meets industry requirements for compatibility and accuracy.

Free UAE shipping available
- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Dial Reading | 0-20-0 |
Graduation | 0.001 Inch |
Hysteresis | 0.0002 Inch |
Inch-Metric | Inch |
Measuring Force | 0.3 - 1.8 N |
Range | 0.1 Inch |
Repeatability | +/-0.0002 Inch |
Series | 1 |
Stem Dia | 9.52 mm Or 0.375 Inch |
Thread type | 4-48UNF |
Type | ANSI/AGD Standard |
Type | Dial Gauge |
Weight | 56 g |
- Measuring Range: 0.1 inch for fine, short-range measurement tasks
- Graduation: 0.001 inch for precise, easily readable results
- Bearing Type: Jeweled bearing for smooth, long-lasting performance
- Mounting: Lug back design for flexible and secure installation
- Standards: ANSI/AGD type construction ensures industry compatibility
- Series: Part of Series 1, trusted for accuracy and reliability
