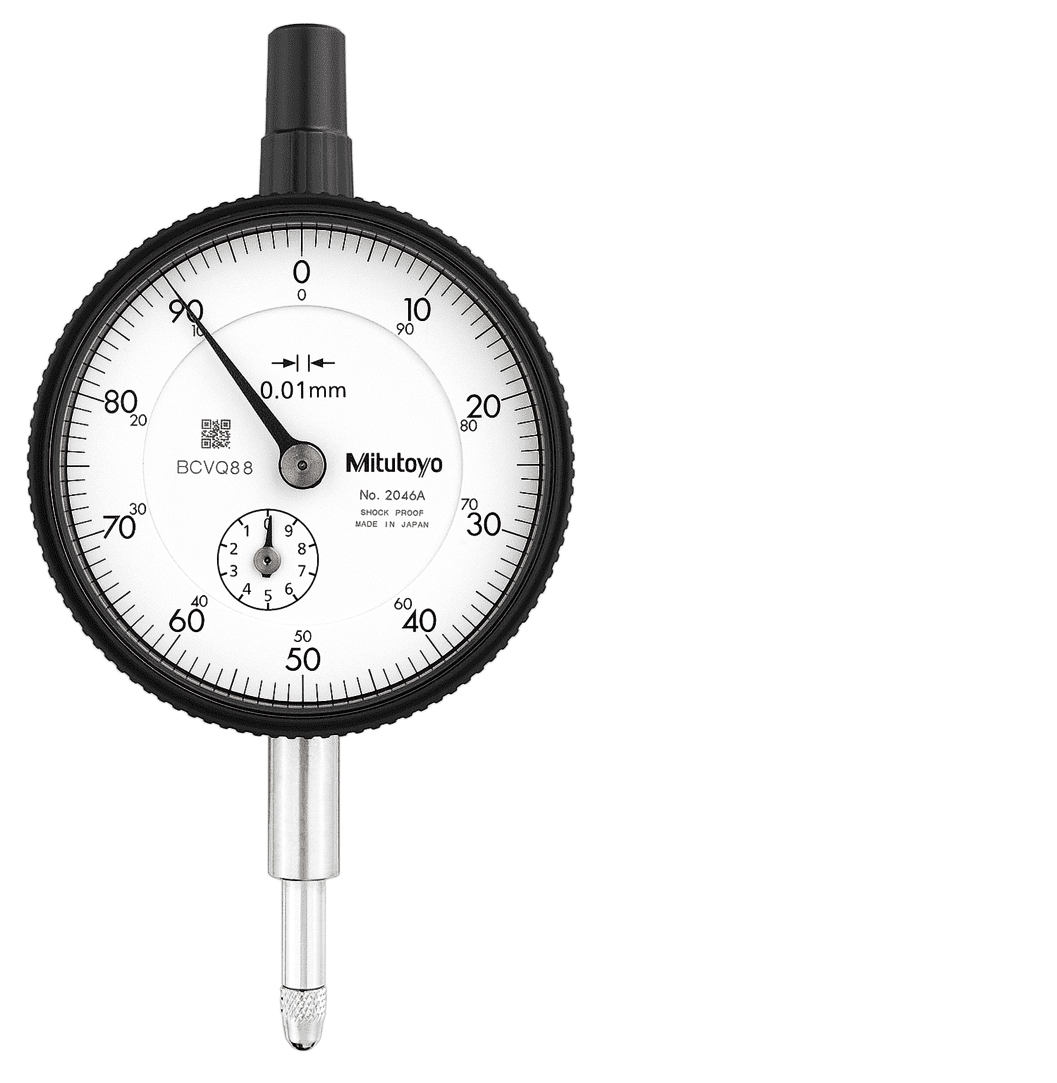

Mitutoyo 2046A | Dial Gauge | Lug Back | ISO Type | Range 0-10mm | Graduation 0.01mm
This dial indicator is typical. It provides you with the following advantages: Either the left or the right side can be equipped with an optional lifting lever and bezel clamp. Without the need for tools, they are simple to install and uninstall. Water and oil penetration is prevented by the absence of through screw holes on the frame and the installation of an O-ring.
Credit purchase may have different price*
- Specifications
- Features
- Downloads
| Graduation | 0.01mm |
| Measuring Force | 1.4 N or less |
| Range | 10mm |
| Repeatability | 3 1/4m |
The bezel of a standard 0.01 mm graduation dial gauge has an outer diameter of 57 mm.
• It is possible to attach the optional lifting lever and bezel clamp to the left or right side. Without the need for tools, these components are simply placed and removed.
• The grand gear is made of stainless steel with a high resistance to wear and deformation; the stem and spindle are made of high-strength, quench-hardened stainless steel appropriate for heavy-duty use; and the bezel and crystal are assembled watertight and an O-ring is used to prevent water or oil penetration.
• A carbide contact point is utilized; • Scale visibility, scratch resistance, and chemical resistance are all improved by the application of an anti-reflective and hard surface coating.
