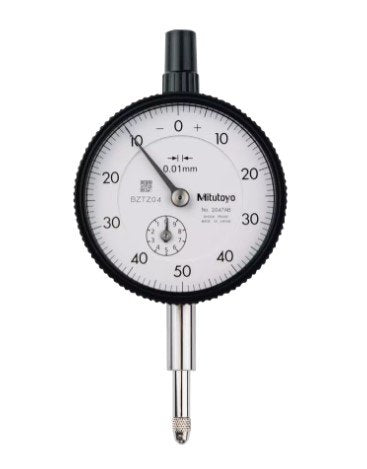

Mitutoyo 2047AB | Flat Back Dial Gauge | 10 mm, 0.01 mm, ISO
Part Number : 2047AB
The Mitutoyo 2047AB is a flat back dial gauge with a 10 mm measuring range and 0.01 mm graduation. Built to ISO and part of Series 2, it is used for linear measurement and inspection, and its flat back allows flush mounting.
- 0.0-50.0-0.0 dial with 0.4 - 1.4 N measuring force
- Repeatability 3.0 µm, hysteresis 3 µm
- Stem diameter 8.0 mm, thread M 2.5 x 0.45 mm
- Carbide-tipped contact point; weight 135 g
- Reverse dial face for measurements in specific orientations
- Analogue metric dial on the 2047AB
Free UAE shipping available
For pricing, please contact our experts.
