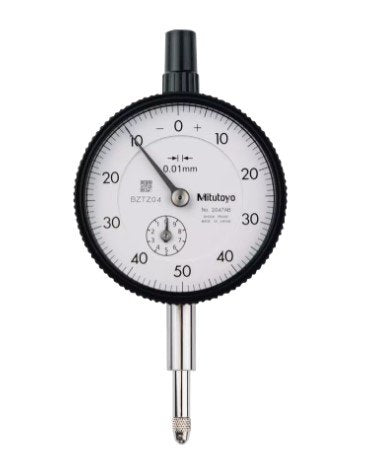

Mitutoyo 2047AB | Dial Gauge | Flat Back | ISO Type | Series 2 | Graduation 0.01 mm | Range 10 mm
The Mitutoyo 2047AB Dial Gauge is a high-precision measuring instrument designed for accurate linear measurements, featuring a 10 mm range and 0.01 mm graduation. Its flat back design allows for flexible and flush mounting in various setups, ensuring ease of use. The gauge incorporates a reverse dial face, making it ideal for measurements in specific orientations. As part of Mitutoyo’s Series 2, it offers long-lasting durability and consistent performance. ISO type compliance guarantees adherence to international standards for precision. This dial gauge is perfect for industrial applications requiring high accuracy and reliability.

Free UAE shipping available
- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Dial Reading | 0.0-50.0-0.0 |
Graduation | 0.01 mm |
Hysteresis | 3 µm |
Inch-Metric | Metric |
Measuring Force | 0.4 - 1.4 N |
Measuring range | 13 µm |
Range | 10 mm |
Repeatability | 3.0 µm |
Series | 2 |
Stem Dia | 8.0 mm |
Thread type | M 2.5 x 0.45 mm |
Type | Dial Gauge |
Type | EN ISO Standard |
Weight | 135 g |
- Measurement Range: 0 – 10 mm
- Graduation: 0.01 mm for fine, accurate readings
- Back Type: Flat back for versatile and flush mounting
- Dial Type: Clear dial display, ideal for precise measurements
- Series: Part of the durable and trusted Mitutoyo Series 2
- Compliance: ISO type, meeting international standards for precision measurements
