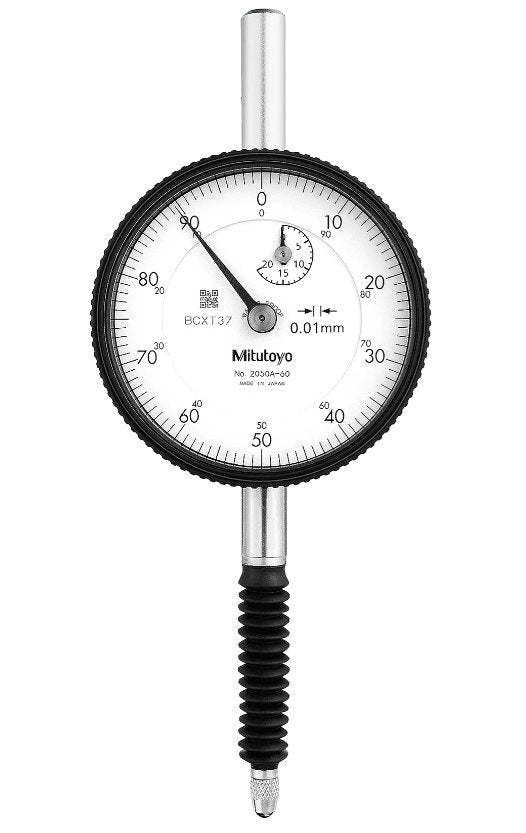

Mitutoyo 2050A-60 | Lug Back Dial Gauge | 20 mm, 0.01 mm, ISO
Part Number : 2050A-60
With 20 mm of plunger travel and 0.01 mm graduations, the 2050A-60 from Mitutoyo is a lug back dial gauge. For inspection and linear measurement, this model is built to ISO and part of Series 2, and its lug back provides secure mounting.
- Dial reading ±0.0-100.0; measuring force 0.4 - 2.5 N
- Repeatability 3.0 µm, hysteresis 4 µm
- M 2.5 x 0.45 mm thread and 8.0 mm stem on the 2050A-60
- IP64-rated protection against dust and water splashes and sealed frame against dust, oil and moisture
- Carbide-tipped contact point; weight 155 g
- Analogue metric dial on the 2050A-60
Free UAE shipping available
For pricing, please contact our experts.
