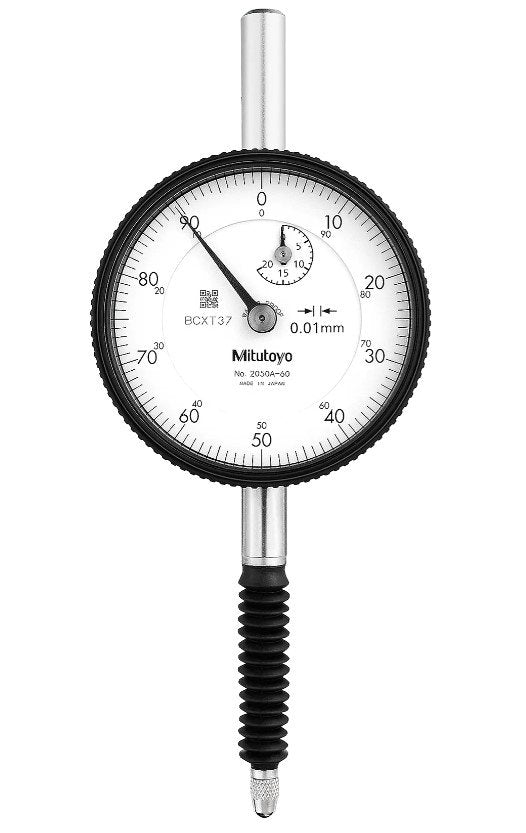

Mitutoyo 2050A-60 | Dial Gauge | Lug Back | ISO Type | Series 2 | Graduation 0.01mm | Range 20mm
The Mitutoyo 2050A-60 is a high-precision dial gauge from Series 2, designed for accurate linear measurements in industrial applications. It features a lug-back design, allowing for secure mounting on various setups. With a 20mm measuring range and 0.01mm graduations, it is ideal for applications requiring tight tolerance measurements. The gauge complies with ISO standards, ensuring compatibility with industry-standard holders and accessories. Its IP64-rated construction provides protection against dust and water splashes, making it suitable for use in harsh environments. The sealed frame design ensures reliable performance by preventing the ingress of contaminants.

Free UAE shipping available
- Specifications
- Features
- Downloads
Contact point | Carbide tipped, thread: M 2.5 x 0.45 mm |
Dial Reading | +/-0.0-100.0 |
Digital/Analog | Analog |
Graduation | 0.01 mm |
Hysteresis | 4 µm |
Inch-Metric | Metric |
Mass (main unit) | 155 g |
Measuring Force | 0.4 - 2.5 N |
Measuring range | 20 µm |
Range | 20 mm |
Repeatability | 3.0 µm |
Series | 2 |
Stem Dia | 8.0 mm |
Type | Dial Gauge |
- Precision Measurement: 0.01 mm graduations with a 20 mm measuring range for detailed metric accuracy.
- Lug Back Design: Enables stable and secure mounting on stands or holders.
- ISO Type Compliance: Ensures compatibility with international standard measurement setups.
- IP64 Rated Protection: Resistant to dust and water splashes for reliable use in challenging environments.
- Scratch-Resistant Crystal: Offers clear visibility and protects the dial face from damage.
- Sealed Construction: Keeps internal components safe from contaminants for consistent performance.
