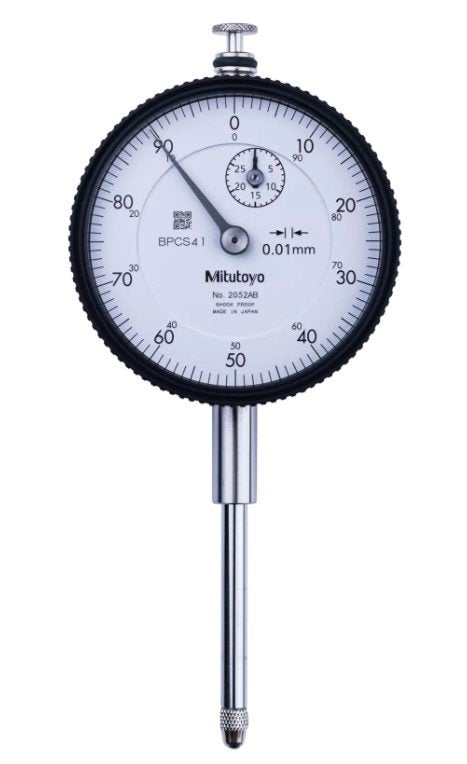

Mitutoyo 2052AB | Dial Gauge | Flat Back | ISO Type | Series 2 | Graduation 0.01mm | Range 30mm
The Mitutoyo 2052AB is a high-precision dial gauge from Series 2, designed for accurate linear measurements in industrial applications. It features a flat back design, allowing for secure mounting on various setups. With a 30mm measuring range and 0.01mm graduations, it is ideal for applications requiring tight tolerance measurements. The gauge complies with ISO standards, ensuring compatibility with industry-standard holders and accessories. Its sealed frame design protects against dust, oil, and moisture, ensuring reliable performance in harsh environments. The scratch-resistant crystal offers clear visibility and enhanced durability.

Free UAE shipping available
- Specifications
- Features
- Downloads
Contact point | Carbide tipped, thread: M 2.5 x 0.45 mm |
Dial Reading | +/-0.0-100.0 |
Digital/Analog | Analog |
Graduation | 0.01 mm |
Hysteresis | 5 µm |
Inch-Metric | Metric |
Mass (main unit) | 143 g |
Measuring Force | 0.4 - 2.5 N |
Measuring range | 25 µm |
Range | 30 mm |
Repeatability | 3.0 µm |
Series | 2 |
Stem Dia | 8.0 mm |
Type | Dial Gauge |
- Precision Measurement: 0.01 mm graduations with a 30 mm range for accurate measurements.​
- Flat Back Design: Ensures secure and stable mounting on various setups.​
- ISO Standard Compliance: Meets international standards for compatibility with global equipment.​
- Sealed Frame: Protects against dust, oil, and moisture for reliable performance in harsh environments.​
- Scratch-Resistant Crystal: Offers clear visibility and durability.​
- Optional Accessories: Bezel clamp and lifting lever can be attached to either side without tools.
