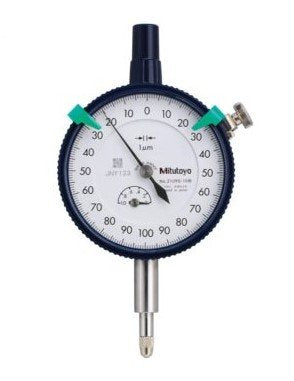

Mitutoyo 2109A-10 | Dial Indicator | Jewelled Bearing | Series 2 | Graduation 0.001mm | Accuracy ± 0.005mm | Range 1mm
The Mitutoyo 2109A-10 Dial Indicator features a jewelled bearing for smooth operation and extended durability. Part of the Series 2, it offers a graduation of 0.001mm for highly precise measurements. With an accuracy of ±0.005mm, it ensures reliable performance in fine-tolerance applications. The indicator has a measuring range of 1mm, suitable for small-scale measurements. Its compact and durable design makes it ideal for precision tasks in workshops and manufacturing environments. The clear dial face ensures easy reading of measurements.

- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Dial Reading | 0-10-0 |
Graduation | 0.001 mm |
Hysteresis | 2 µm |
Inch-Metric | Metric |
Measuring Force | 0.4 - 1.5 N |
Measuring range | 5 µm |
Range | 1 mm |
Repeatability | 1 µm |
Series | 2 |
Stem Dia | 8 mm |
Thread type | M 2.5 x 0.45 mm |
Type | Dial Indicator |
Weight | 148 g |
- Jewelled Bearing: This ensures smooth movement and long-lasting performance.
- Graduation of 0.001mm: Provides precise measurement readings for high-accuracy applications.
- Accuracy of ±0.005mm: This guarantees dependable and consistent measurements.
- Measuring Range of 1mm: Ideal for applications that require fine measurement within this range.
- Durable and Compact Design: Built for long-term use in workshop or industrial settings.
- Clear Dial Face: Allows for easy and quick reading of measurements for efficient use.
