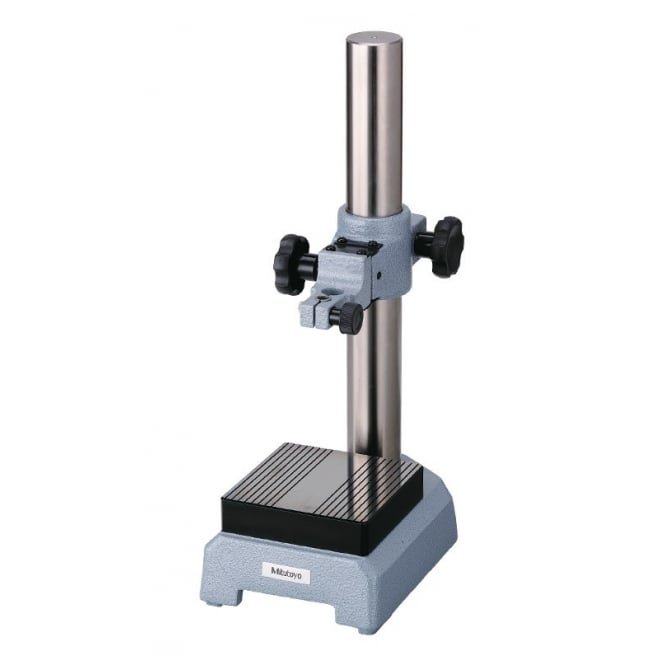

Mitutoyo 215-405-10 | Comparator Stand | 235 mm
The Mitutoyo 215-405-10 is the 235 mm comparator stand, with a rigid cast-iron base and upright column. Its mounting bracket has fine adjustment, and the grid-type anvil stops very flat parts wringing to the surface.
- 235 mm version
- Cast-iron base and column
- Bracket with fine adjustment
- Grid-type anvil
- Specifications
- Features
- Downloads
| Part Number | 215-405-10 |
| Brand | Mitutoyo |
| Type | Comparator stand |
| Size (as listed) | 235 mm |
| Base and Column | Cast iron |
| Bracket | Fine adjustment |
| Anvil | Grid type |
• Comparator stands have a very stable, cast iron base which enables precise measurement.
• The partially serrated anvil prevents very flat workpieces from wringing to it and the 2.3 μm flatness (or better) promotes accurate measurement.
• The 215-505-10 model has a threaded column which enables easy and precise coarse adjustment.
• Serrated anvils 110 x 110 mm are supplied with 215-405-10, and 150 x 150 mm with 215-505-10 models
