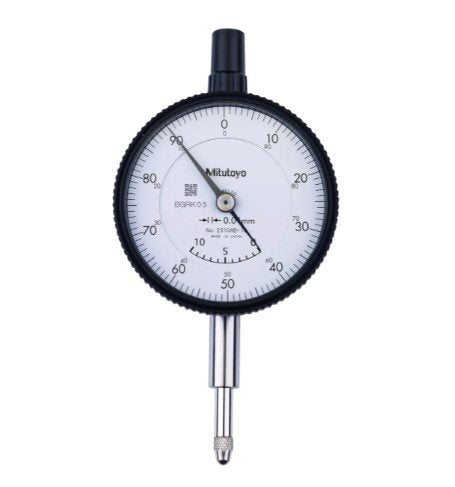

Mitutoyo 2310A-10 | Dial Gauge | Lug Back | ISO Type | Series 2 | Jewelled Bearing | Graduation 0.01 mm | Range 10 mm
The Mitutoyo 2310A-10 Dial Gauge is a high-precision instrument designed for accurate linear measurements, featuring a 10 mm range and 0.01 mm graduation. Its lug back allows for secure and stable mounting in various setups. The inclusion of jewelled bearings ensures exceptionally smooth movement and long-term reliability. As part of Mitutoyo’s renowned Series 2, it delivers consistent performance in demanding environments. ISO type compliance guarantees adherence to international quality standards, making it ideal for precision engineering and inspection tasks.

Free UAE shipping available
- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Dial Reading | +/-0.0 - 100.0 |
Graduation | 0.01 mm |
Hysteresis | 3 µm |
Inch-Metric | Metric |
Measuring Force | 0.4 - 1.4 N |
Measuring range | 15 µm |
Range | 10 mm |
Repeatability | 3.0 µm |
Series | 2 |
Stem Dia | 8.0 mm |
Thread type | M 2.5 x 0.45 mm |
Type | Dial Gauge |
Type | EN ISO Standard |
Weight | 146 g |
- Measurement Range: 0 – 10 mm
- Graduation: 0.01 mm for high-accuracy readings
- Back Type: Lug back for stable and secure mounting
- Bearing Type: Jewelled bearings for smooth, wear-resistant operation
- Series: Part of Mitutoyo’s reliable and durable Series 2
- Compliance: ISO type, meeting international precision standards
